Snapshot Ingestion

Snapshot ingestion is for data sources that deliver full replacement files rather than incremental changes or CDC events. SDP-META maps snapshot ingestion to the Declarative Pipeline apply_changes_from_snapshot API, which compares each snapshot to the previous state to produce correct insert, update, and delete semantics.

Configuration

Set source_format to snapshot and configure bronze_apply_changes_from_snapshot:

[
  {
    "data_flow_id": "1",
    "data_flow_group": "snapshot_group",
    "source_format": "snapshot",
    "source_details": {
      "snapshot_format": "parquet",
      "source_path_dev": "s3://my-bucket/snapshots/customers/",
      "source_path_prod": "s3://my-prod-bucket/snapshots/customers/"
    },
    "bronze_catalog_dev": "my_catalog",
    "bronze_database_dev": "retail_bronze",
    "bronze_table": "customers_snapshot",
    "bronze_apply_changes_from_snapshot": {
      "keys": ["customer_id"],
      "scd_type": "1"
    }
  }
]

source_details fields for snapshot

Field	Description
snapshot_format	File format: parquet, json, csv, avro, etc.
source_path_{env}	Cloud storage path where snapshot files are delivered

bronze_apply_changes_from_snapshot fields

Field	Type	Required	Description
keys	array of strings	Yes	Primary key columns
scd_type	string	Yes	1 for overwrite, 2 to retain history
track_history_column_list	array of strings	No	(Type 2 only) Columns whose changes trigger a new history row
track_history_except_column_list	array of strings	No	(Type 2 only) Columns to exclude from history tracking

Silver layer with snapshot

Configure silver_apply_changes_from_snapshot for snapshot-apply semantics on the silver table:

{
  "silver_apply_changes_from_snapshot": {
    "keys": ["customer_id"],
    "scd_type": "2",
    "track_history_except_column_list": ["last_updated_ts"]
  }
}

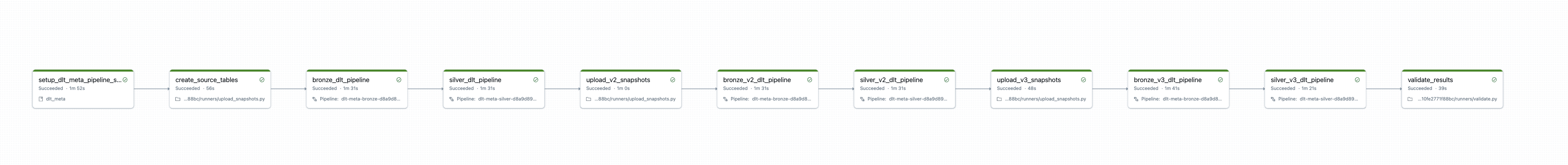

Demo output

Running the snapshot demo

python demo/launch_af_cloudfiles_demo.py \
  --cloud_provider_name=aws \
  --dbr_version=15.3.x-scala2.12 \
  --uc_catalog_name=<your_catalog> \
  --source=snapshot
