Silver Fanout

Silver fanout is a topology where a single bronze table feeds multiple silver tables, each with its own transformation logic, filter conditions, and CDC configuration.

How it works​

  1. Run the first onboarding job to create the bronze table and the first silver table.
  2. Run a second onboarding job in append mode ("overwrite": "False") with a new onboarding file defining the additional silver table.
  3. The pipeline reads all silver entries for the group and materializes each silver table in the same update.

silver_append_flows configuration​

For a second silver table within the same onboarding entry, use silver_append_flows:

{
  "silver_append_flows": [
    {
      "name": "customers_active_silver_flow",
      "create_streaming_table": false,
      "source_format": "delta",
      "source_details": {
        "source_database": "my_catalog.retail_bronze",
        "source_table": "customers_bronze"
      },
      "reader_options": {},
      "once": false
    }
  ]
}

Pipeline topology​

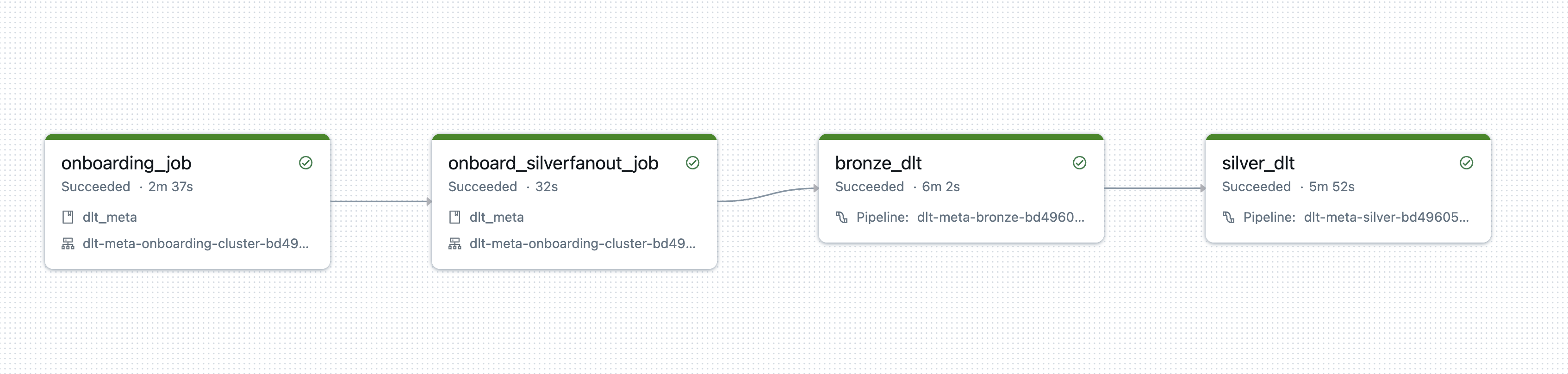

Silver fanout workflow

Silver fanout in Declarative Pipeline

Full example: customers_bronze → two silver tables​

First onboarding file (run with "overwrite": "True"):

[
  {
    "data_flow_id": "1",
    "data_flow_group": "customers_group",
    "source_format": "cloudFiles",
    "source_details": {
      "source_schema_path": "/Volumes/my_catalog/my_schema/my_volume/schema/customers.ddl",
      "source_path_dev": "s3://my-bucket/cdc/customers/"
    },
    "bronze_catalog_dev": "my_catalog",
    "bronze_database_dev": "retail_bronze",
    "bronze_table": "customers_bronze",
    "silver_catalog_dev": "my_catalog",
    "silver_database_dev": "retail_silver",
    "silver_table": "customers_silver",
    "silver_transformation_json_prod": "/Volumes/my_catalog/my_schema/my_volume/conf/silver_transformations.json"
  }
]

Second onboarding file (run with "overwrite": "False"):

[
  {
    "data_flow_id": "2",
    "data_flow_group": "customers_group",
    "source_format": "delta",
    "source_details": {
      "source_database": "my_catalog.retail_bronze",
      "source_table": "customers_bronze"
    },
    "silver_catalog_dev": "my_catalog",
    "silver_database_dev": "retail_silver",
    "silver_table": "customers_active_silver",
    "silver_transformation_json_prod": "/Volumes/my_catalog/my_schema/my_volume/conf/silver_transformations_fanout.json"
  }
]

The silver_transformations_fanout.json file applies a where_clause to restrict to active customers:

[
  {
    "target_table": "customers_active_silver",
    "source_format": "delta",
    "select_exp": ["customer_id", "name", "email", "region"],
    "where_clause": "is_active = true"
  }
]

Running the demo​

python demo/launch_silver_fanout_demo.py \
  --cloud_provider_name=aws \
  --dbr_version=15.3.x-scala2.12 \
  --uc_catalog_name=<your_catalog>
