DLT Sink

The DLT Sink feature writes pipeline output to an external Delta table or Kafka topic outside the pipeline's managed storage. SDP-META maps bronze_sink and silver_sink directly to the Declarative Pipeline Sink API.

bronze_sink configuration

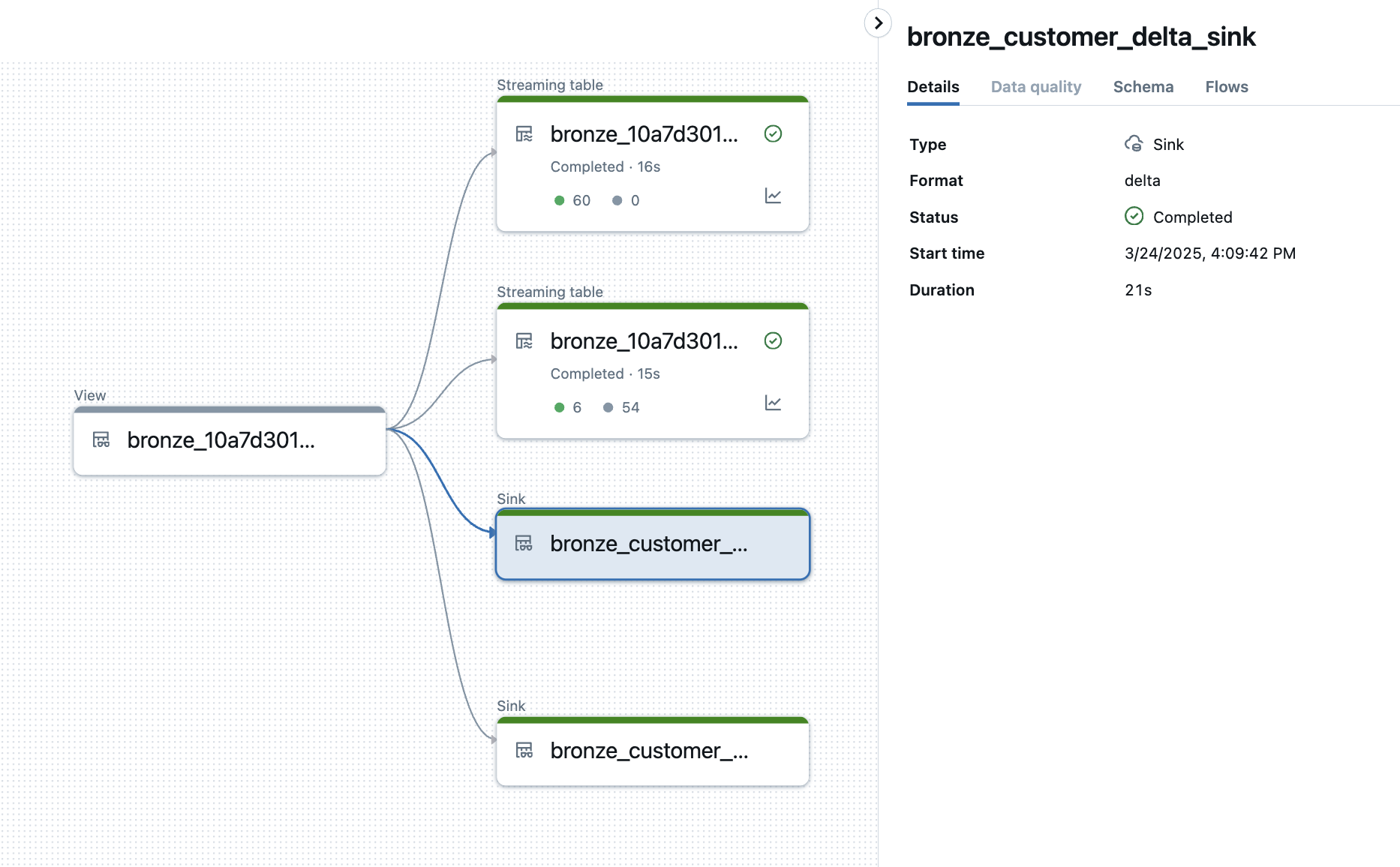

Delta sink

{
  "bronze_sink": {
    "name": "bronze_sink",
    "format": "delta",
    "options": {
      "tableName": "my_catalog.my_schema.my_external_table"
    }
  }
}

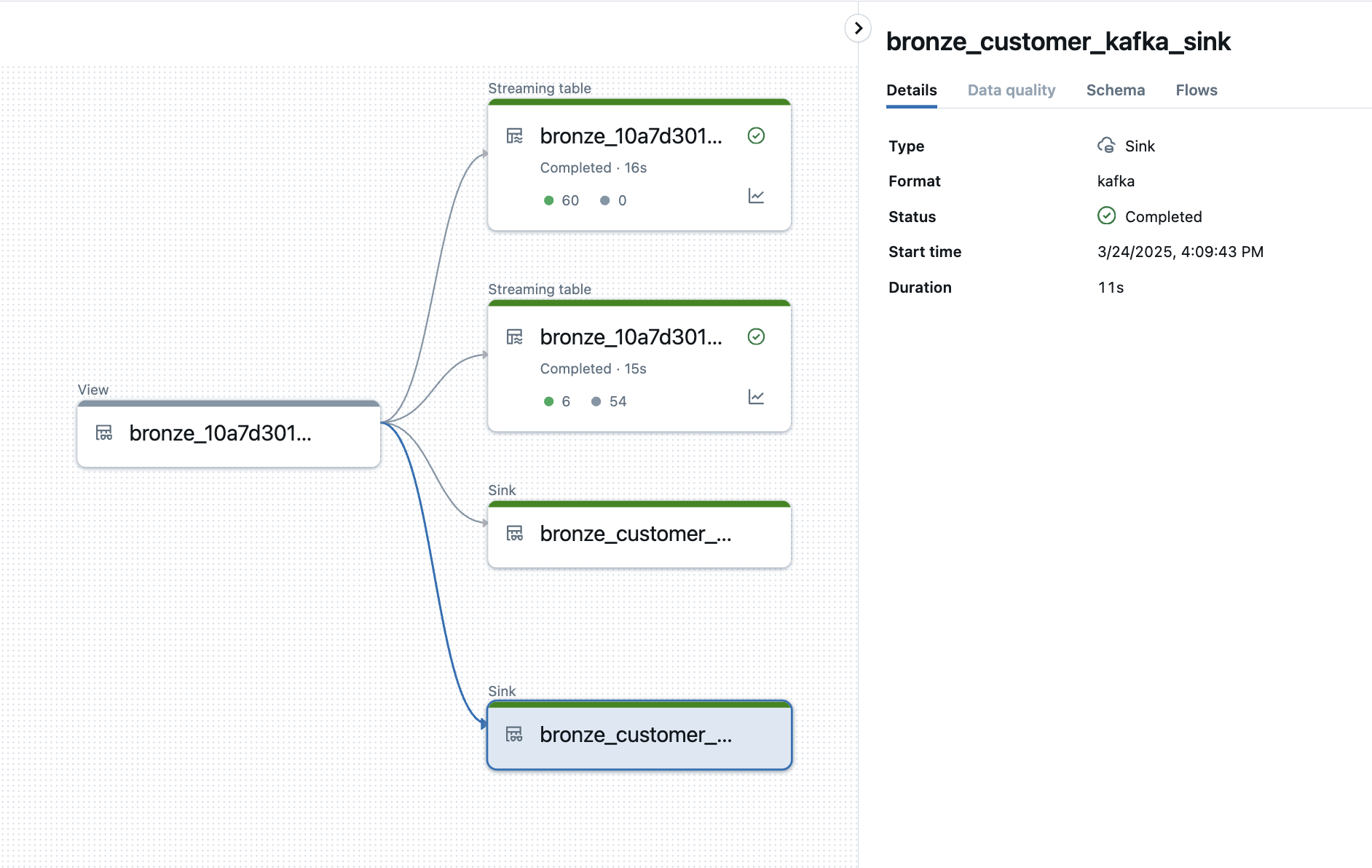

Kafka sink

{
  "bronze_sink": {
    "name": "bronze_sink",
    "format": "kafka",
    "options": {
      "kafka.bootstrap.servers": "broker-host:9092",
      "subscribe": "my-output-topic"
    }
  }
}

silver_sink configuration

Same structure as bronze_sink:

{
  "silver_sink": {
    "name": "silver_sink",
    "format": "delta",
    "options": {
      "tableName": "my_catalog.my_schema.my_silver_external_table"
    }
  }
}

Sink object fields

Field	Type	Required	Description
name	string	Yes	Logical name for the sink
format	string	Yes	delta or kafka
options	object	Yes	Format-specific options

Delta sink options:

Option	Description
tableName	Fully qualified table name: catalog.schema.table

Kafka sink options:

Option	Description
kafka.bootstrap.servers	Comma-separated broker addresses
subscribe	Target Kafka topic name

Full example

[
  {
    "data_flow_id": "1",
    "data_flow_group": "orders_group",
    "source_format": "cloudFiles",
    "source_details": {
      "source_schema_path": "/Volumes/my_catalog/my_schema/my_volume/schema/orders.ddl",
      "source_path_dev": "s3://my-bucket/landing/orders/"
    },
    "bronze_catalog_dev": "my_catalog",
    "bronze_database_dev": "retail_bronze",
    "bronze_table": "orders_bronze",
    "bronze_sink": {
      "name": "bronze_sink",
      "format": "delta",
      "options": {
        "tableName": "external_catalog.archive_schema.orders_archive"
      }
    },
    "silver_catalog_dev": "my_catalog",
    "silver_database_dev": "retail_silver",
    "silver_table": "orders_silver",
    "silver_transformation_json_prod": "/Volumes/my_catalog/my_schema/my_volume/conf/silver_transformations.json",
    "silver_sink": {
      "name": "silver_sink",
      "format": "kafka",
      "options": {
        "kafka.bootstrap.servers": "broker-host:9092",
        "subscribe": "orders-processed"
      }
    }
  }
]
