Kafka & Event Hubs

SDP-META supports streaming ingestion from Apache Kafka and Azure Event Hubs. Event Hubs uses the Kafka protocol endpoint, so both share the same underlying Spark Structured Streaming reader.

Apache Kafka​

Prerequisites​

  • A running Kafka broker reachable from your Databricks cluster
  • A Kafka topic already created

Onboarding configuration​

{
  "data_flow_id": "1",
  "data_flow_group": "streaming_group",
  "source_format": "kafka",
  "source_details": {
    "source_schema_path": "/Volumes/my_catalog/my_schema/my_volume/schema/events.ddl",
    "kafka.bootstrap.servers": "broker-host:9092",
    "subscribe": "my-kafka-topic"
  },
  "bronze_catalog_dev": "my_catalog",
  "bronze_database_dev": "streaming_bronze",
  "bronze_table": "events_bronze",
  "bronze_reader_options": {
    "startingOffsets": "latest",
    "failOnDataLoss": "false"
  }
}

Key source_details fields for Kafka​

FieldDescription
source_schema_pathPath to the Spark DDL schema file
kafka.bootstrap.serversComma-separated broker addresses
subscribeKafka topic name
kafka.sasl.mechanismSASL mechanism, e.g. PLAIN, SCRAM-SHA-256
kafka.security.protocolSecurity protocol, e.g. SASL_SSL, PLAINTEXT

Running the Kafka demo​

python integration_tests/run_integration_tests.py \
  --cloud_provider_name=aws \
  --dbr_version=15.3.x-scala2.12 \
  --source=kafka \
  --uc_catalog_name=<your_catalog> \
  --kafka_topic_name=sdp-meta-integration-test \
  --kafka_broker=host:9092

Azure Event Hubs​

Azure Event Hubs exposes a Kafka-compatible endpoint. SDP-META uses Databricks Secrets to store the connection key.

Prerequisites​

  1. An Azure Event Hubs namespace with a topic (Event Hub) and a SAS policy with Listen permission
  2. The SAS key stored in Databricks Secrets:
databricks secrets create-scope eventhubs_creds
databricks secrets put-secret eventhubs_creds consumer --string-value "<your-sas-key>"
databricks secrets put-secret eventhubs_creds producer --string-value "<your-sas-key>"

Onboarding configuration​

{
  "data_flow_id": "1",
  "data_flow_group": "iot_group",
  "source_format": "eventhub",
  "source_details": {
    "source_schema_path": "/Volumes/my_catalog/my_schema/my_volume/schema/iot.ddl",
    "eventhub.accessKeyName": "consumer",
    "eventhub.accessKeySecretName": "consumer",
    "eventhub.name": "iot-events",
    "eventhub.secretsScopeName": "eventhubs_creds",
    "kafka.sasl.mechanism": "PLAIN",
    "kafka.security.protocol": "SASL_SSL",
    "eventhub.namespace": "my-eventhubs-namespace",
    "eventhub.port": "9093"
  },
  "bronze_catalog_dev": "my_catalog",
  "bronze_database_dev": "iot_bronze",
  "bronze_table": "iot_bronze"
}

Key source_details fields for Event Hubs​

FieldDescription
source_schema_pathPath to the Spark DDL schema file
eventhub.accessKeyNameName of the SAS policy
eventhub.accessKeySecretNameDatabricks Secrets key name containing the SAS key value
eventhub.nameEvent Hub topic name
eventhub.secretsScopeNameDatabricks Secrets scope
kafka.sasl.mechanismAlways PLAIN for Event Hubs
kafka.security.protocolAlways SASL_SSL for Event Hubs
eventhub.namespaceNamespace (without .servicebus.windows.net)
eventhub.portAlways 9093 for Event Hubs

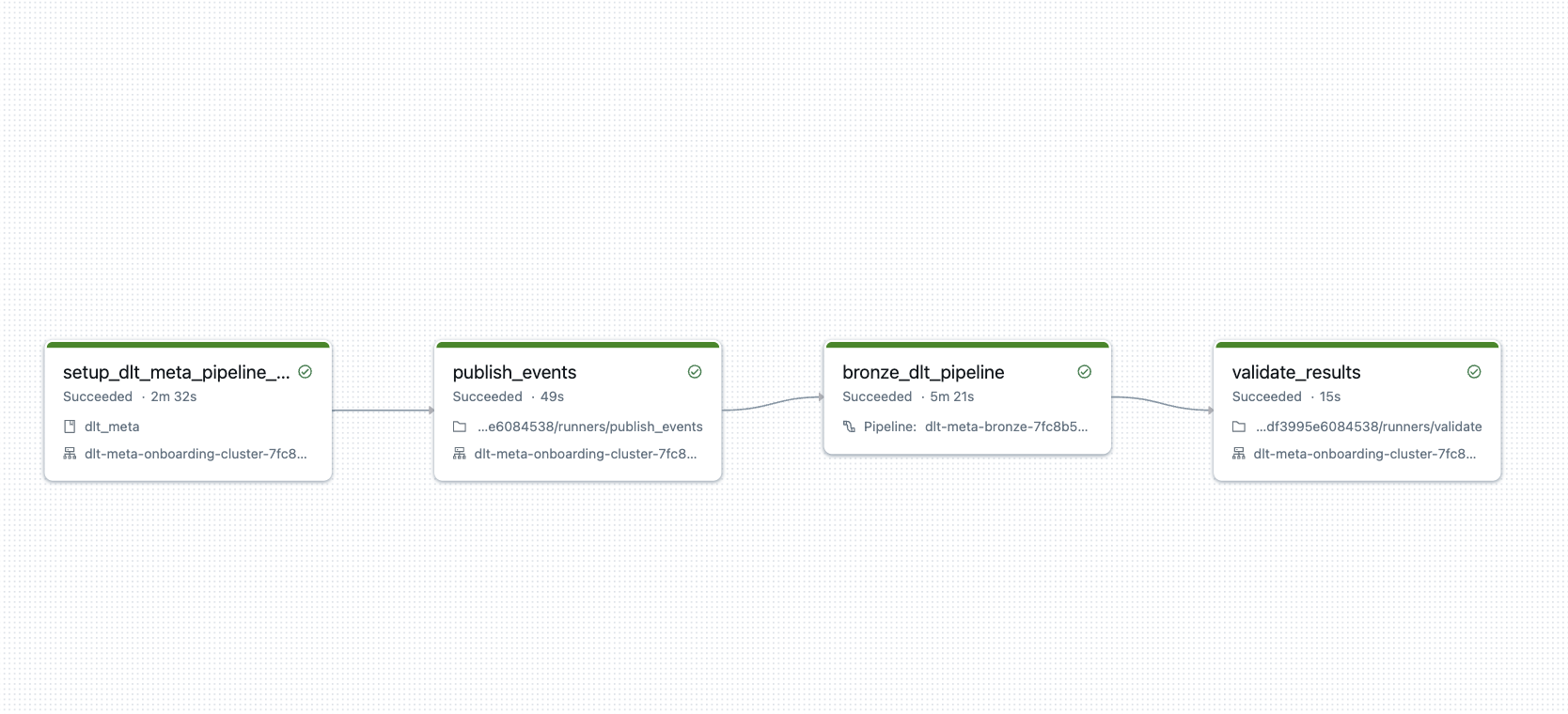

Event Hubs demo output​

Event Hubs demo result

Running the Event Hubs demo​

python integration_tests/run_integration_tests.py \
  --cloud_provider_name=azure \
  --dbr_version=15.3.x-scala2.12 \
  --source=eventhub \
  --uc_catalog_name=<your_catalog> \
  --eventhub_name=iot \
  --eventhub_secrets_scope_name=eventhubs_creds \
  --eventhub_namespace=my-eventhubs-namespace \
  --eventhub_port=9093 \
  --eventhub_producer_accesskey_name=producer \
  --eventhub_consumer_accesskey_name=consumer
