Multi-Source CDC

Multi-source CDC merges CDC events from multiple independent source paths into a single target table — for example, regional data feeds (US, EU, APAC) landing in separate S3 prefixes.

Two patterns are supported:

PatternWhen to use
Append + CDC (bronze_append_flows + bronze_cdc_apply_changes / silver_cdc_apply_changes)Sources are heterogeneous; land all raw events in bronze first, then run a single CDC merge
Native multi-source CDC (bronze_cdc_apply_changes_flows / silver_cdc_apply_changes_flows)Sources share the same CDC schema; merge directly without a separate bronze landing step

Pattern 1 — Append + CDC​

How it works​

  1. Define a primary source in source_details.
  2. Use bronze_append_flows to define additional sources that write to the same bronze streaming table via the Declarative Pipeline append_flow API.
  3. Configure bronze_cdc_apply_changes (or silver_cdc_apply_changes) — the single create_auto_cdc_flow call merges events from all contributing sources.

Configuration​

[
  {
    "data_flow_id": "1",
    "data_flow_group": "customers_group",
    "source_format": "cloudFiles",
    "source_details": {
      "source_schema_path": "/Volumes/my_catalog/my_schema/my_volume/schema/customers_cdc.ddl",
      "source_path_dev": "s3://my-bucket/cdc/customers/us/"
    },
    "bronze_catalog_dev": "my_catalog",
    "bronze_database_dev": "retail_bronze",
    "bronze_table": "customers_cdc",
    "bronze_reader_options": {
      "cloudFiles.format": "json",
      "cloudFiles.inferColumnTypes": "true"
    },
    "bronze_append_flows": [
      {
        "name": "customers_eu_flow",
        "create_streaming_table": false,
        "source_format": "cloudFiles",
        "source_details": {
          "source_path_dev": "s3://my-bucket/cdc/customers/eu/",
          "source_schema_path": "/Volumes/my_catalog/my_schema/my_volume/schema/customers_cdc.ddl"
        },
        "reader_options": {
          "cloudFiles.format": "json",
          "cloudFiles.inferColumnTypes": "true"
        },
        "once": false
      },
      {
        "name": "customers_apac_flow",
        "create_streaming_table": false,
        "source_format": "cloudFiles",
        "source_details": {
          "source_path_dev": "s3://my-bucket/cdc/customers/apac/",
          "source_schema_path": "/Volumes/my_catalog/my_schema/my_volume/schema/customers_cdc.ddl"
        },
        "reader_options": {
          "cloudFiles.format": "json",
          "cloudFiles.inferColumnTypes": "true"
        },
        "once": false
      }
    ],
    "bronze_cdc_apply_changes": {
      "keys": ["customer_id"],
      "sequence_by": "dmsTimestamp",
      "scd_type": "1",
      "apply_as_deletes": "Op = 'D'",
      "except_column_list": ["Op", "dmsTimestamp"]
    },
    "silver_catalog_dev": "my_catalog",
    "silver_database_dev": "retail_silver",
    "silver_table": "customers",
    "silver_transformation_json_prod": "/Volumes/my_catalog/my_schema/my_volume/conf/silver_transformations.json",
    "silver_cdc_apply_changes": {
      "keys": ["customer_id"],
      "sequence_by": "dmsTimestamp",
      "scd_type": "2",
      "apply_as_deletes": "Op = 'D'",
      "except_column_list": ["Op", "dmsTimestamp"]
    }
  }
]

bronze_append_flows entry fields​

FieldTypeRequiredDescription
namestringYesUnique name for this append flow within the pipeline
create_streaming_tablebooleanYesSet to false when writing to an existing streaming table
source_formatstringYesSource format: cloudFiles, delta, kafka, etc.
source_detailsobjectYesSource connection details — same structure as top-level source_details
reader_optionsobjectNoReader options for this flow
oncebooleanNotrue for batch execution; false for continuous streaming
note

All append flows targeting the same bronze table must produce a schema compatible with the streaming table. The primary source establishes the schema; append flows must match it.

Pattern 2 — Native multi-source CDC​

Use bronze_cdc_apply_changes_flows (or silver_cdc_apply_changes_flows at the silver layer) when all sources share the same CDC schema. A single create_auto_cdc_flow is issued per flow group — no separate bronze landing table required.

Configuration​

[
  {
    "data_flow_id": "2",
    "data_flow_group": "orders_group",
    "bronze_catalog_dev": "my_catalog",
    "bronze_database_dev": "retail_bronze",
    "bronze_table": "orders_cdc",
    "bronze_cdc_apply_changes_flows": {
      "keys": ["order_id"],
      "sequence_by": "updated_at",
      "scd_type": "1",
      "apply_as_deletes": "Op = 'D'",
      "except_column_list": ["Op"],
      "flows": [
        {
          "name": "orders_us_flow",
          "source_details": {
            "source_format": "cloudFiles",
            "source_path_dev": "s3://my-bucket/cdc/orders/us/",
            "source_schema_path": "/Volumes/my_catalog/my_schema/vol/schema/orders.ddl"
          }
        },
        {
          "name": "orders_eu_flow",
          "source_details": {
            "source_format": "cloudFiles",
            "source_path_dev": "s3://my-bucket/cdc/orders/eu/",
            "source_schema_path": "/Volumes/my_catalog/my_schema/vol/schema/orders.ddl"
          }
        }
      ]
    },
    "silver_catalog_dev": "my_catalog",
    "silver_database_dev": "retail_silver",
    "silver_table": "orders",
    "silver_cdc_apply_changes_flows": {
      "keys": ["order_id"],
      "sequence_by": "updated_at",
      "scd_type": "2",
      "apply_as_deletes": "Op = 'D'",
      "except_column_list": ["Op"],
      "flows": [
        {
          "name": "orders_silver_us_flow",
          "source_details": {
            "source_format": "delta",
            "source_path_dev": "my_catalog.retail_bronze.orders_us"
          }
        },
        {
          "name": "orders_silver_eu_flow",
          "source_details": {
            "source_format": "delta",
            "source_path_dev": "my_catalog.retail_bronze.orders_eu"
          }
        }
      ]
    }
  }
]
note

bronze_cdc_apply_changes_flows and bronze_cdc_apply_changes are mutually exclusive on the same onboarding row. Similarly for silver_cdc_apply_changes_flows and silver_cdc_apply_changes.

Pipeline diagram​

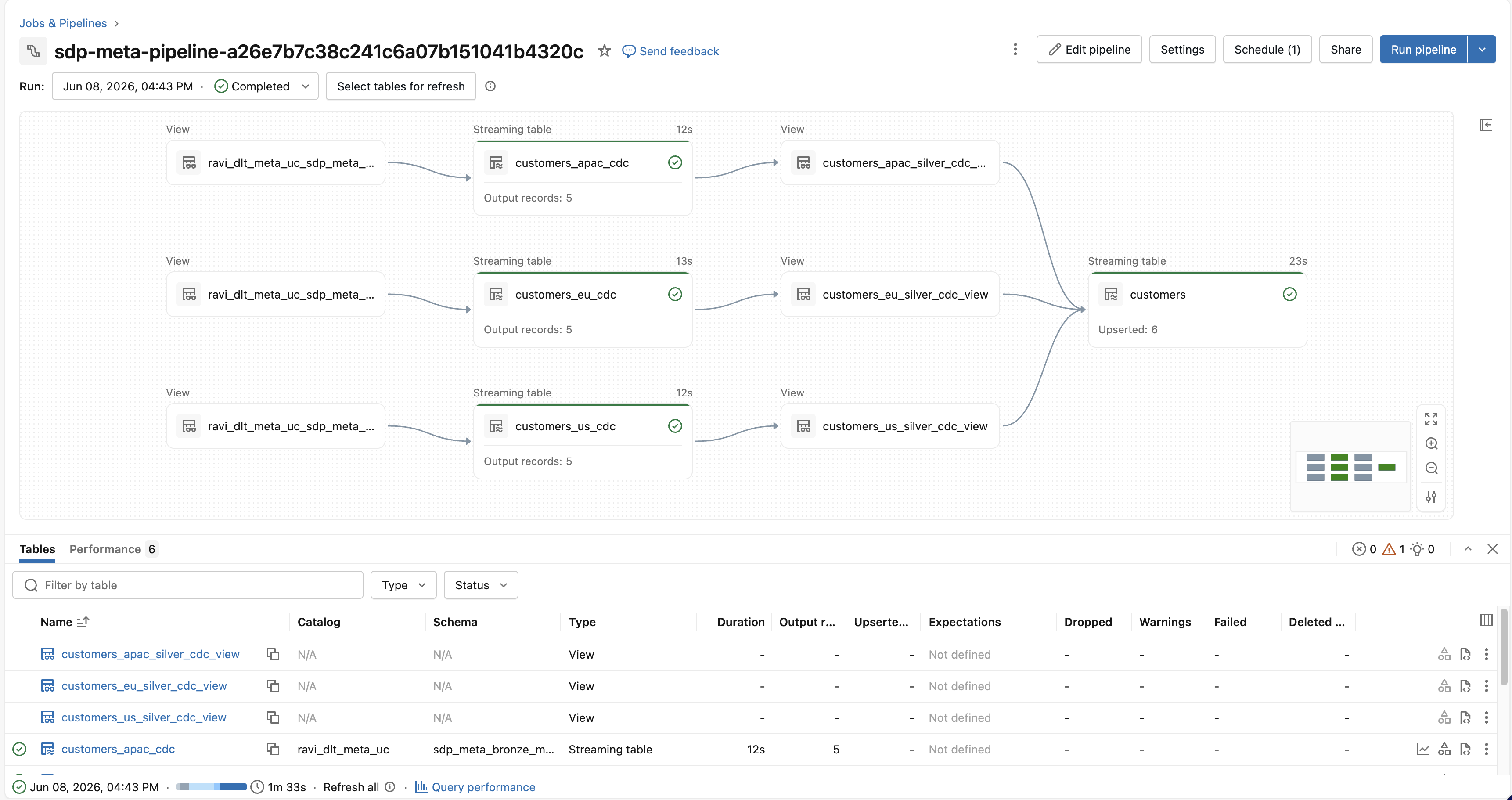

Multi-source CDC silver pipeline

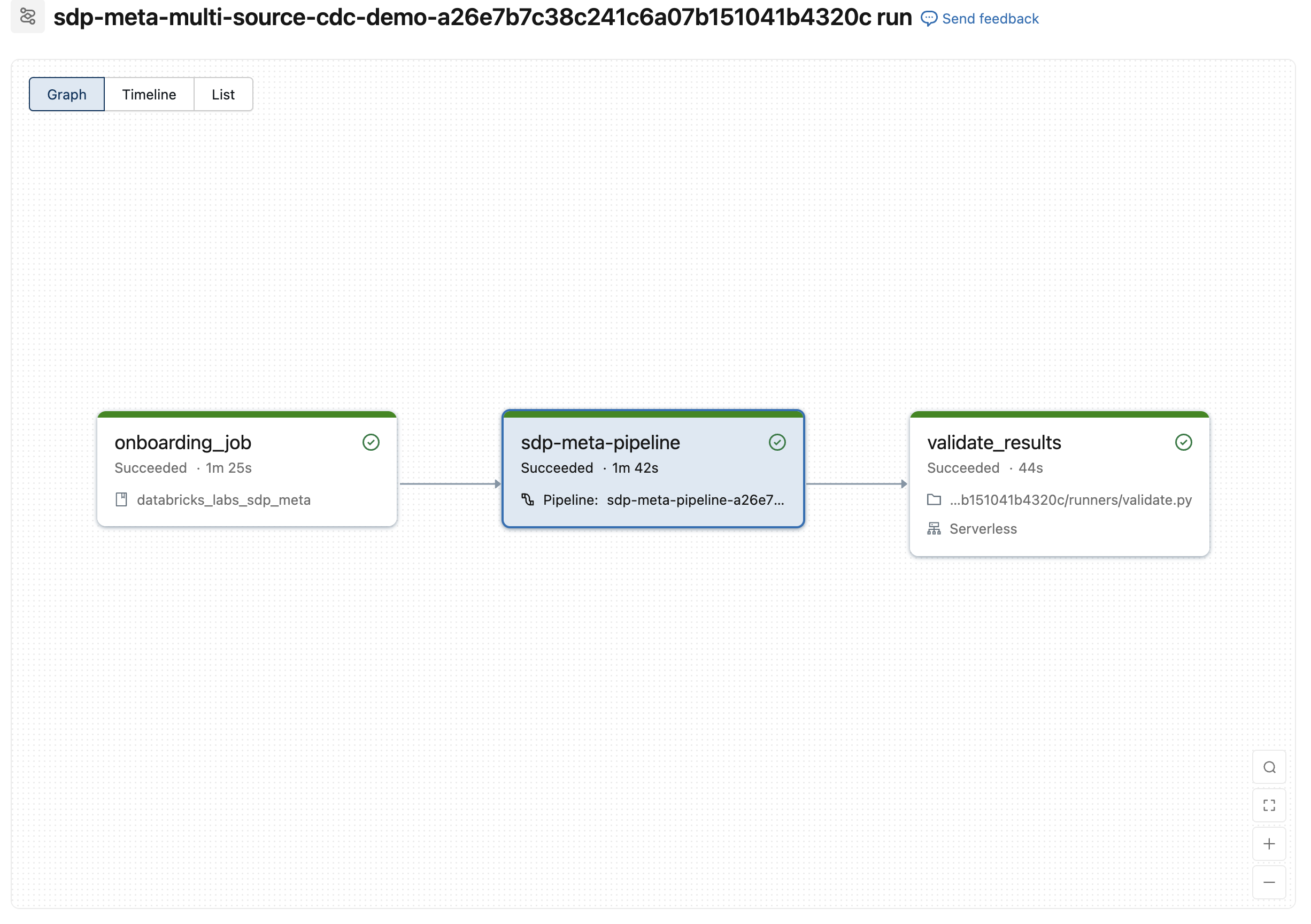

Multi-source CDC demo result

Demo​

python demo/launch_af_cloudfiles_demo.py \
  --cloud_provider_name=aws \
  --dbr_version=15.3.x-scala2.12 \
  --uc_catalog_name=<your_catalog>
