Readers & Writers

GeoBrix provides Spark DataSource V2 readers and writers for geospatial file formats, across both execution tiers — lightweight (pyrx, pure-Python, no JAR) and heavyweight (rasterx, GDAL/OGR-backed). Both tiers scale by partitioning work across the cluster rather than reading or writing sequentially on a single node.

Each lightweight *_gbx format pairs with a heavyweight counterpart (*_ogr / gdal / gtiff_gdal), and the two tiers are held to row-count / byte parity as a hard gate in benchmarking.

Readers

Load geospatial files into a distributed DataFrame. The lightweight raster readers (raster_gbx, gtiff_gbx, cog_gbx) return virtual tiles by default — bytes-free (path, window) references; pass .option("virtualTiles", "false") to get materialized bytes instead. See the Readers Overview for the full list, tier differences, output schemas, and options.

Format	Lightweight	Heavyweight
Raster (generic)	raster_gbx	gdal
GeoTIFF	gtiff_gbx	gtiff_gdal
COG	cog_gbx	— (light-only)
NetCDF	netcdf_gbx	netcdf_gdal / netcdf_ogr
PMTiles	pmtiles_gbx	— (light-only)
File lister	file_gbx	— (light-only)
Vector (generic)	vector_gbx	ogr
Shapefile	shapefile_gbx	shapefile_ogr
GeoJSON	geojson_gbx	geojson_ogr
GeoJSONL	geojsonl_gbx	— (light-only reader)
GeoPackage	gpkg_gbx	gpkg_ogr
File Geodatabase	file_gdb_gbx	file_gdb_ogr

Writers

Write DataFrames back out to geospatial files. See the Writers Overview for the column contract, single-file vs sharded trade-offs, and per-format details.

Format	Lightweight	Heavyweight
Raster (generic)	raster_gbx	gdal
GeoTIFF	gtiff_gbx	gtiff_gdal
COG	cog_gbx	— (light-only)
PMTiles	pmtiles_gbx	pmtiles
NetCDF	netcdf_gbx	— (light-only)
Vector (generic)	vector_gbx	— (light-only)
Shapefile	shapefile_gbx	— (light-only)
GeoJSON	geojson_gbx	— (light-only)
GeoJSONL	geojsonl_gbx	geojsonl_ogr
GeoPackage	gpkg_gbx	— (light-only)
File Geodatabase	file_gdb_gbx	— (hybrid; needs native GDAL)

Registering the lightweight tier

Heavyweight readers and writers are auto-discovered from the JAR. The lightweight Python DataSources are not auto-registered — call register(spark) once per session before using any *_gbx format:

from databricks.labs.gbx.ds.register import register
register(spark)

Shared file-access base

All lightweight (*_gbx) readers and writers share a common file-access base — the file_gbx module — that centralises FILE and FUSE routing, directory enumeration, and write-mode selection. This is a light-tier concern; the heavyweight (JAR-backed) readers and writers use their own GDAL/OGR access paths.

Capability tiers

file_gbx probes the runtime once per session and picks the best available tier:

Tier	Available on	Capabilities
read_files	DBR 13.3 LTS +	read_files(format=>'file') — native FILE refs, file metadata, recursive listing
list_files	DBR 18 LTS +	list_files(…) — metadata + FILE refs, directory listing only
fuse	All runtimes (OSS / DBR < 13)	os.walk + FUSE mount — always available; no FILE column

Read-options matrix

Measured on 1,000 raster tiles or 100k vector features; times are whole-job wall-clock.

Source	Read mechanism	Runtime	Serverless	Classic	Default / when
FILE-column table (recommended on Serverless)	Delta scan of path (EXTERNAL)	any	~2 s	~2 s	default for a table source (vector_file_read(table), raster tilesTable)
FILE-column table	Delta scan of FILE .uri (MANAGED)	DBR 13.3+	~2 s	~2 s	auto when the table is MANAGED
Directory	read_files(format=>'file') — enumerate + FILE refs + size	DBR 13.3+	~10 s / 10k (enumerate)	~same	auto dir default on 13.3+
Directory	list_files — enumerate (metadata only)	DBR 18+	~10 s / 10k (enumerate)	~same	used when read_files is unavailable
Directory	FUSE walk + per-tile open (raster_gbx DataSource)	all	~30 s / 1k ⚠️	~20 s / 1k	fallback tile read (no FILE tier); slower than the Delta-table path on all runtimes

The read_files/list_files rows time the listing step (per 10k files, comparable, metadata-bound). The Delta-scan and DataSource rows time the actual tile read/open (per 1k tiles). The performance gap is the per-tile open/decode cost, not listing — the Delta-scan FILE-column-table path (~2 s) beats the DataSource directory scan by ~10× on classic and ~16–17× on Serverless (~2 s vs. ~30 s per 1k tiles). On Serverless, prefer reading from a FILE-column table (Delta scan). See Serverless & Memory for the connect-aware stream caps (64 MiB on Serverless/Connect, 256 MiB on classic) and a full guide to memory-safe pipelines.

The no-gating rule: the auto default (access="auto" on readers, file_mode="auto" on writers) silently downgrades to the best available tier and never errors. Explicitly requesting "managed" or "external" on a FUSE-only runtime raises a clear, actionable error describing the upgrade path. Your pipelines run on any runtime without code changes; you only need to opt in to FILE when you want the governance and lifecycle benefits.

Read resolver

When a lightweight reader opens a source file it calls open_for_read(source, access="auto"). The resolver checks the tier and picks a strategy:

• FILE-capable runtime (DBR 13.3+): routes to the FILE API. Files at or under GBX_STREAM_MAX_BYTES (default 64 MiB on Serverless/Connect, 256 MiB on classic) open a byte-range stream — one round-trip, no FUSE, no local copy, and the fastest path for typical tile sizes. Files over the cap fall through to as_local_file() — a lazy local-file reference backed by the FILE handle — which pages bytes from the Volume on demand and is a memory-safety mechanism, not a performance optimization. A blanket FUSE-direct path for small files is slower, not faster; the streaming path is preferred whenever the file fits in the cap. Open dataset handles are held in a per-partition LRU cache keyed by source path, amortising the open cost across all windows of the same source.
• FUSE fallback (OSS / DBR < 13): resolves to the bare /Volumes/… path and uses a probe-then-stage strategy — tries random-access directly; falls back to a sequential copy only if the probe fails.

Write committer

Writers call open_for_write(spark, df, target, file_mode="auto", filespace=…, layout=…). file_mode="auto" resolves as follows:

Condition	Effective mode	Mechanism
FILE available + filespace given	"managed"	create_file — MANAGED FILE column
FILE available, no filespace	"external"	try_to_file — EXTERNAL FILE column
No FILE (fuse tier)	"fuse"	Plain Delta write, path STRING / raster BINARY

Explicit modes ("managed", "external", "fuse") override auto-selection. Requesting "managed" or "external" on a fuse-only runtime raises a clear error.

Layout options

The layout parameter controls row ordering in the output Delta table:

Value	Behaviour
"order"	ORDER BY path at write time (default — scan-friendly)
"cluster"	CLUSTER BY path in the DDL (FILE-mode tables only); run OPTIMIZE <table> afterward for durable clustering
"plain"	No ordering — fastest write, scan order determined by the cluster

partitionBy is not supported; use layout="order" unless you have a specific clustering need.

File enumeration

enumerate_files(path, *, recursive=True, include_hidden=False, extensions=None, path_glob_filter=None) lists files in a directory and returns a Spark DataFrame (FILE-capable tiers) or a Python list (FUSE tier), with columns path, size, and file (a FILE reference when available, None on FUSE).

By default, files whose names start with _ or . (Spark/Hadoop metadata files such as _SUCCESS, _committed_*, .crc) are skipped. Pass include_hidden=True to include them.

A positive selection filter — either extensions (a tuple of suffixes, e.g. (".tif", ".nc")) or path_glob_filter (an fnmatch-style glob, e.g. "*.tif") — narrows which files are returned. The two filters are mutually exclusive and are ANDed with include_hidden: for example, include_hidden=True + path_glob_filter="[!.]*" returns underscore-named files such as _data.tif but still excludes dot-named files such as .crc.

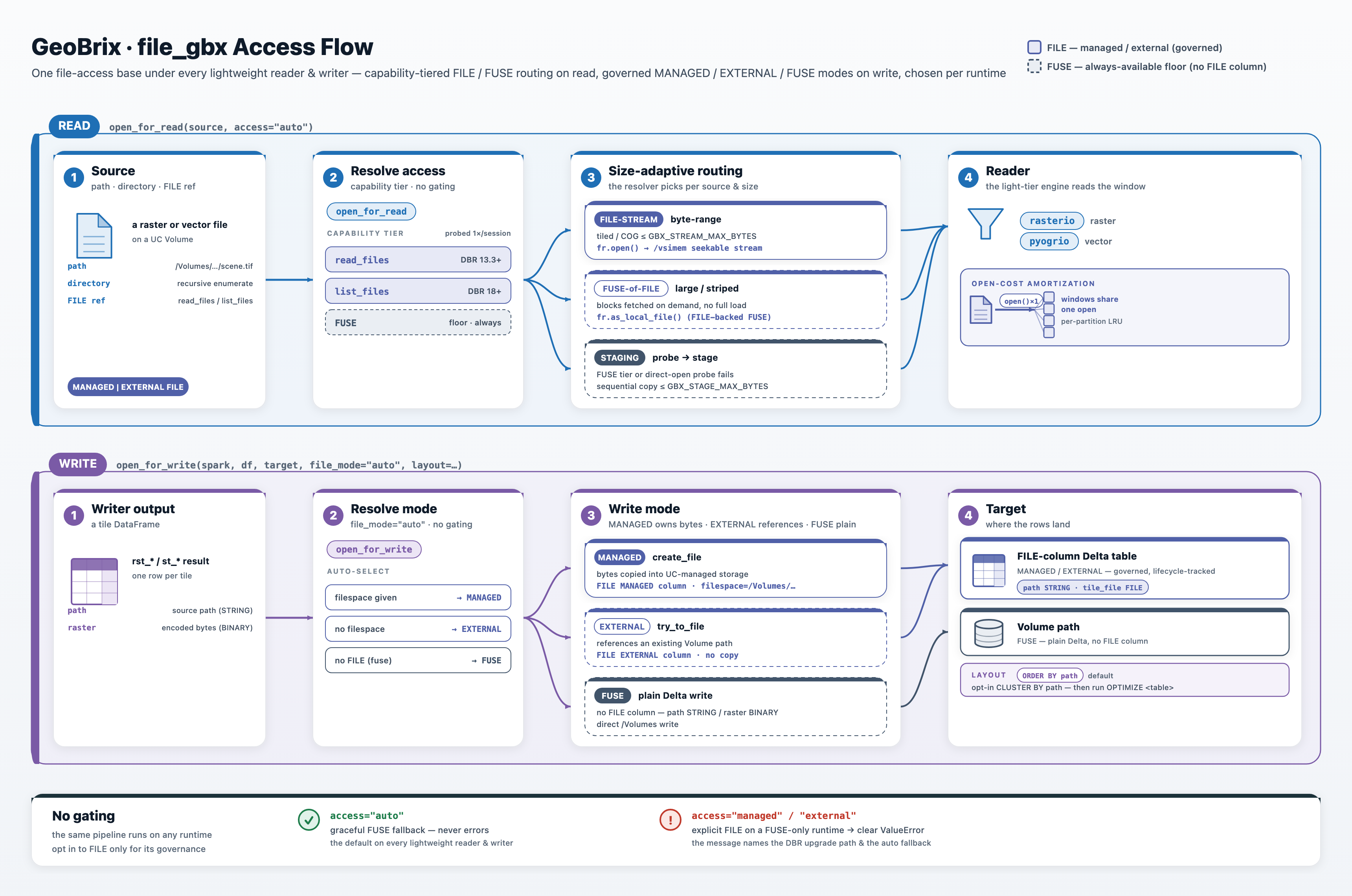

Light-tier FILE flow

See file_gbx Reader for enumeration and read-mode details, and file_gbx Writer for write-mode and ingest options.

Next Steps

• Readers Overview — every reader, tier differences, output schemas, options.
• Writers Overview — the column contract, single-file vs sharded writers, per-format details.
• VRT & Mosaics — tile a large source into bounded mini-COGs + a portable VRT index; read back with raster_gbx or cog_gbx.
• Serverless & Memory — connect-aware caps, materialize-vs-virtual, memory-safe write patterns, and caveats.
• Benchmarking — tier-vs-tier timing and parity methodology.
