Declarative Automation Bundles

A Databricks Declarative Automation Bundle (DAB) declares jobs, pipelines, and configuration as code. SDP-META ships a DAB template for deploying the onboarding job and Lakeflow Spark Declarative Pipelines from git — no interactive wizards, and promoting from dev to prod is a single command.

Prerequisites

• Python 3.10+
• Databricks CLI v0.213 or later on PATH
• databricks labs install sdp-meta

Scaffold a new bundle

# Fast path: zero prompts, developer-friendly defaults.
databricks labs sdp-meta bundle-init --quickstart

# Interactive (recommended the first time):
databricks labs sdp-meta bundle-init

Prompt reference

Prompt	Description
bundle_name	Folder name and job/pipeline prefix
uc_catalog_name	Unity Catalog catalog holding the SDP-META schema and target schemas
sdp_meta_schema	Schema for bronze_dataflowspec / silver_dataflowspec tables
bronze_target_schema / silver_target_schema	Schemas for Bronze/Silver pipeline outputs
layer	bronze, silver, or bronze_silver
pipeline_mode	split (default) or combined. Only used when layer=bronze_silver.
source_format	cloudFiles, delta, kafka, eventhub, or snapshot
onboarding_file_format	yaml or json
dataflow_group	Group name that ties flows in the onboarding file to the pipeline
wheel_source	pypi or volume_path
sdp_meta_dependency	PyPI coordinate or /Volumes/... wheel path. Default __SET_ME__ is rejected by bundle-validate.
author	Written to the import_author column on DataflowSpec rows

Bundle directory structure

<bundle_name>/
├── databricks.yml
├── README.md
├── resources/
│   ├── variables.yml
│   ├── sdp_meta_onboarding_job.yml
│   └── sdp_meta_pipelines.yml
├── notebooks/
│   └── init_sdp_meta_pipeline.py
├── conf/
│   ├── onboarding.yml  (or .json)
│   ├── silver_transformations.yml  (or .json)
│   └── dqe/
│       └── example_table/
│           └── bronze_expectations.yml  (or .json)
└── recipes/
    ├── from_uc.py
    ├── from_volume.py
    ├── from_inventory.py
    └── from_topics.py

recipes/ contains helper scripts for bulk-adding flows via bundle-add-flow. See CLI Commands for usage.

Installing SDP-META on pipelines

Option A — PyPI

# resources/variables.yml
wheel_source:
  default: pypi
sdp_meta_dependency:
  default: databricks-labs-sdp-meta==0.1.0

Option B — UC Volume wheel

cd <bundle_name>
databricks labs sdp-meta bundle-prepare-wheel

Then paste the printed path into resources/variables.yml:

wheel_source:
  default: volume_path
sdp_meta_dependency:
  default: /Volumes/<catalog>/<schema>/<volume>/databricks_labs_sdp_meta-0.1.0-py3-none-any.whl

Validate → deploy → run

cd <bundle_name>
databricks labs sdp-meta bundle-validate
databricks bundle deploy --target dev
databricks bundle run onboarding --target dev
databricks bundle run pipelines --target dev

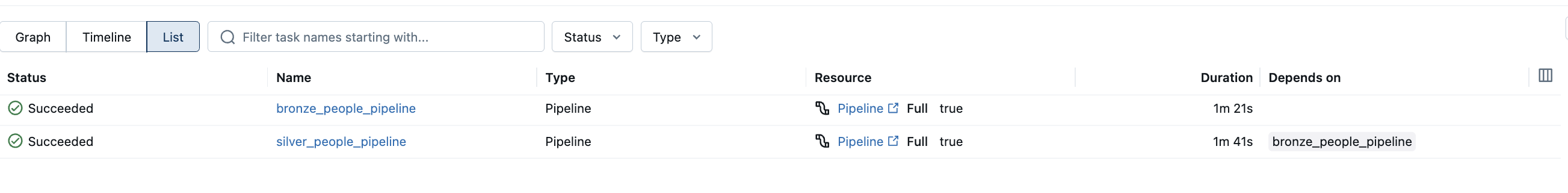

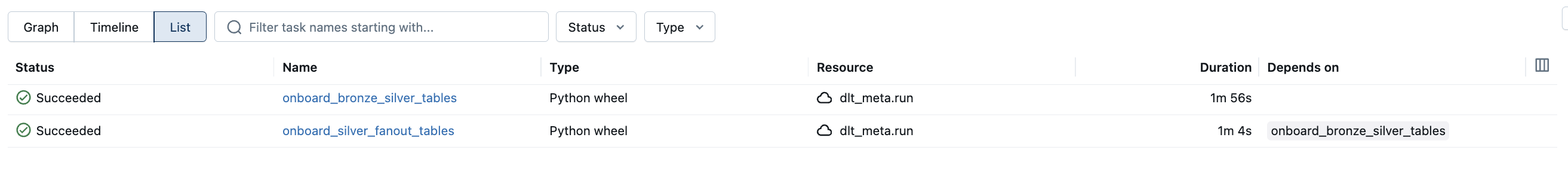

After the onboarding job runs:

What bundle-validate checks

• Onboarding file exists under conf/
• dataflow_group variable is referenced by at least one flow in the onboarding file
• layer variable matches the pipelines declared
• sdp_meta_dependency is not __SET_ME__
• sdp_meta_dependency shape matches wheel_source
• No <your-...> placeholders in conf/onboarding.* or databricks.yml
• All YAML/JSON files parse cleanly

Promote to prod

databricks bundle deploy --target prod

Per-target variable overrides go under targets.<name>.variables in databricks.yml.

CI/CD: run_as for prod

Uncomment the run_as block in the prod target and set the service principal application ID:

targets:
  prod:
    mode: production
    # run_as:
    #   service_principal_name: <your-prod-service-principal-application-id>

Split vs combined pipelines

When layer=bronze_silver:

• pipeline_mode=split (default) — two separate pipelines. Silver waits for Bronze. Independent rollback and lifecycle management.
• pipeline_mode=combined — one pipeline, one update cycle. Lower overhead; best when Bronze and Silver always run together.

To switch: change pipeline_mode in resources/variables.yml and redeploy.

Bundle CLI commands

Command	What it does
bundle-init	Scaffold a new SDP-META DAB from the packaged template
bundle-prepare-wheel	Build the local wheel and upload it to a UC Volume
bundle-add-flow	Append one or more flow entries to the bundle's onboarding file
bundle-validate	Run databricks bundle validate plus SDP-META-specific consistency checks

Adding flows with bundle-add-flow

# Single flow (interactive prompts)
databricks labs sdp-meta bundle-add-flow

# Bulk from CSV
databricks labs sdp-meta bundle-add-flow
# pick "csv" mode and point at the file

bundle-add-flow pulls bundle defaults from resources/variables.yml, auto-increments data_flow_id, and refuses to write on ID collisions.

tip

After editing the onboarding file, re-run only the onboarding job — not databricks bundle deploy — unless you also changed resources/variables.yml or the bundle YAML files.
