API Reference

Lakemeter exposes a REST API at /api/v1/. All endpoints require authentication through Databricks Apps SSO.

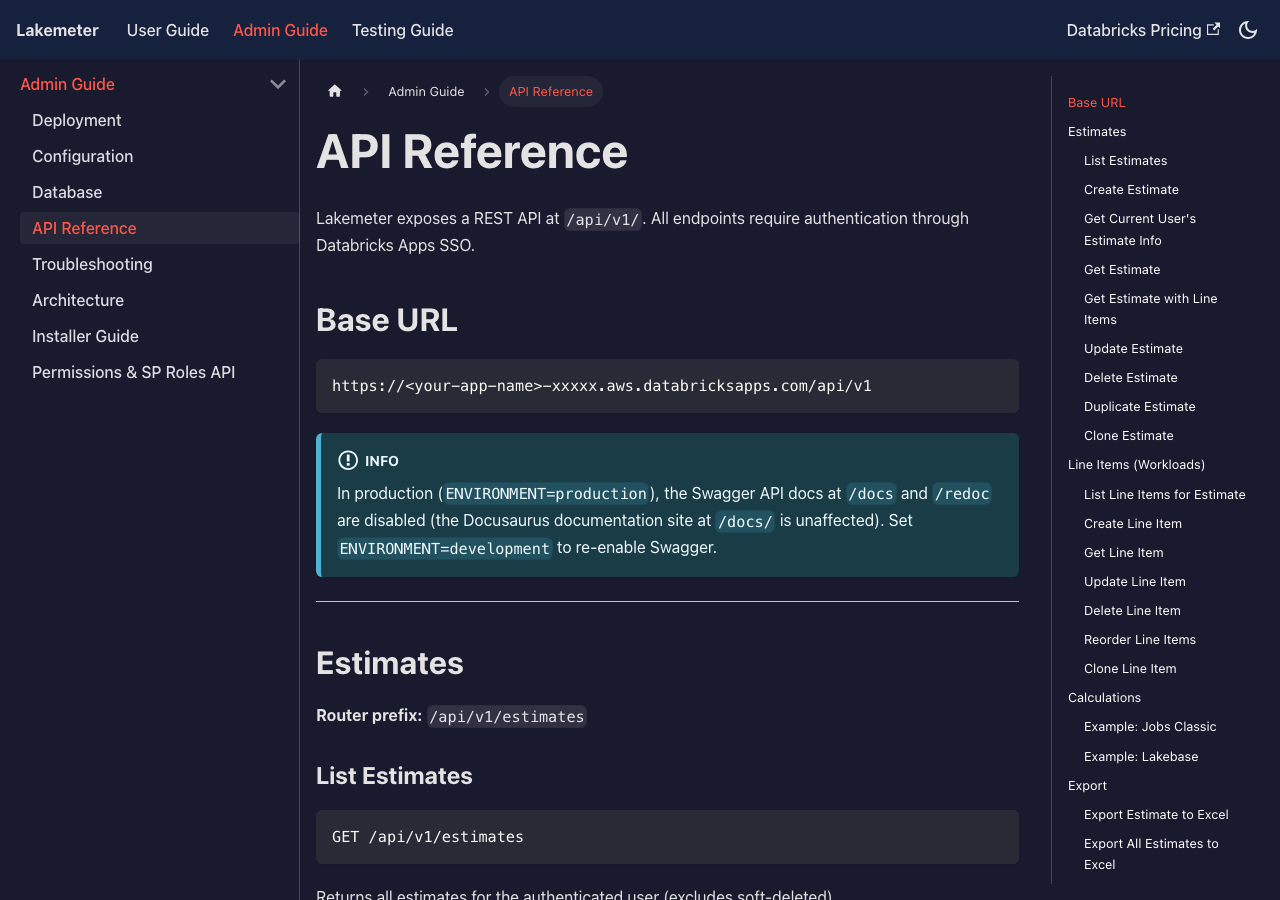

API Reference documentation page The API Reference — all REST endpoints organized by resource with request/response details.

Base URL​

https://<your-app-name>-<workspace-id>.<cloud>.databricksapps.com/api/v1
tip

Interactive Swagger API docs are available at /api/docs and /api/redoc on your deployed app.

Estimates​

Router prefix: /api/v1/estimates

List Estimates​

GET /api/v1/estimates

Returns all estimates for the authenticated user (excludes soft-deleted).

Response: EstimateListResponse[]

[
  {
    "estimate_id": "uuid",
    "estimate_name": "My Estimate",
    "cloud": "AWS",
    "region": "us-east-1",
    "tier": "PREMIUM",
    "status": "draft",
    "version": 3,
    "line_item_count": 5,
    "created_at": "2025-01-15T10:30:00Z",
    "updated_at": "2025-01-16T14:20:00Z"
  }
]

Create Estimate​

POST /api/v1/estimates/

Request Body:

{
  "estimate_name": "Q4 Data Platform",
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM"
}

Response: 201 Created with EstimateResponse

Get Current User's Estimate Info​

GET /api/v1/estimates/me/info

Returns summary info (estimate count, recent activity) for the authenticated user.

Get Estimate​

GET /api/v1/estimates/{estimate_id}

Response: EstimateResponse with full details.

Get Estimate with Line Items​

GET /api/v1/estimates/{estimate_id}/full

Optimized single-query response with estimate and all line items.

{
  "estimate": { ... },
  "line_items": [ ... ]
}

Update Estimate​

PUT /api/v1/estimates/{estimate_id}

Request Body: (all fields optional)

{
  "estimate_name": "Updated Name",
  "region": "us-west-2",
  "tier": "ENTERPRISE",
  "status": "approved"
}

Delete Estimate​

DELETE /api/v1/estimates/{estimate_id}

Response: 204 No Content (soft delete)

Duplicate Estimate​

POST /api/v1/estimates/{estimate_id}/duplicate

Creates a full copy with all workloads. Name gets "(Copy)" suffix.

Clone Estimate​

POST /api/v1/estimates/{estimate_id}/clone

Request Body: (optional)

{
  "new_name": "Custom Clone Name"
}

Line Items (Workloads)​

Router prefix: /api/v1/line-items

List Line Items for Estimate​

GET /api/v1/line-items/estimate/{estimate_id}

Response: LineItemResponse[]

Create Line Item​

POST /api/v1/line-items/

Request Body:

{
  "estimate_id": "uuid",
  "workload_name": "ETL Pipeline",
  "workload_type": "JOBS",
  "serverless_enabled": false,
  "driver_node_type": "m5.xlarge",
  "worker_node_type": "m5.2xlarge",
  "num_workers": 4,
  "photon_enabled": true,
  "runs_per_day": 3,
  "avg_runtime_minutes": 45,
  "days_per_month": 30
}

Response: 201 Created with LineItemResponse

Get Line Item​

GET /api/v1/line-items/{line_item_id}

Update Line Item​

PUT /api/v1/line-items/{line_item_id}

All fields are optional — only include fields you want to change.

Delete Line Item​

DELETE /api/v1/line-items/{line_item_id}

Response: 204 No Content

Reorder Line Items​

POST /api/v1/line-items/reorder
{
  "line_item_ids": ["uuid1", "uuid2", "uuid3"]
}

Clone Line Item​

POST /api/v1/line-items/{line_item_id}/clone

Response: 201 Created with cloned LineItemResponse

Calculations​

Router prefix: /api/v1/calculate

All calculation endpoints accept workload parameters and return cost breakdowns.

EndpointWorkload Type
POST /api/v1/calculate/jobs-classicJobs (Classic)
POST /api/v1/calculate/jobs-serverlessJobs (Serverless)
POST /api/v1/calculate/all-purpose-classicAll-Purpose (Classic)
POST /api/v1/calculate/all-purpose-serverlessAll-Purpose (Serverless)
POST /api/v1/calculate/dbsql-classic-proDBSQL (Classic/Pro)
POST /api/v1/calculate/dbsql-serverlessDBSQL (Serverless)
POST /api/v1/calculate/dlt-classicDLT (Classic)
POST /api/v1/calculate/dlt-serverlessDLT (Serverless)
POST /api/v1/calculate/lakeflow-connectLakeflow Connect pipeline and optional gateway
POST /api/v1/calculate/model-servingModel Serving
POST /api/v1/calculate/fmapi-databricksFMAPI (Databricks-hosted)
POST /api/v1/calculate/fmapi-proprietaryFMAPI (Proprietary)
POST /api/v1/calculate/vector-searchAI Search (the route key remains vector-search)
POST /api/v1/calculate/lakebaseLakebase
POST /api/v1/calculate/databricks-appsDatabricks Apps
POST /api/v1/calculate/general-storageDatabricks Default Storage (DSU-based)
POST /api/v1/calculate/zerobusStandard or OTel Zerobus ingestion
POST /api/v1/calculate/platform-addonEstimate-level Platform Add-on uplift
POST /api/v1/calculate/ai-parseAI Parse (Document AI)
POST /api/v1/calculate/ai-extractAI Extract (raw STRING or parsed document input)
POST /api/v1/calculate/ai-classifyAI Classify (raw STRING or parsed document input)
POST /api/v1/calculate/ai-gatewayUnity AI Gateway (additive, excludes underlying inference)
POST /api/v1/calculate/agent-evaluationAgent Evaluation (additive, excludes evaluated app inference)
POST /api/v1/calculate/ai-runtimeAI Runtime serverless GPU training (MODEL_TRAINING SKU, AWS and Azure)
POST /api/v1/calculate/shutterstock-imageaiShutterstock ImageAI

Example: Jobs Classic​

{
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM",
  "driver_node_type": "m5.xlarge",
  "worker_node_type": "m5.2xlarge",
  "num_workers": 4,
  "photon_enabled": false,
  "runs_per_day": 3,
  "avg_runtime_minutes": 45,
  "days_per_month": 30
}

Example: Lakebase​

{
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM",
  "cu_size": 4,
  "num_nodes": 2,
  "storage_gb": 100,
  "hours_per_month": 730
}

Example: Databricks Apps​

{
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM",
  "size": "medium",
  "num_apps": 3,
  "hours_per_month": 730
}

Example: Databricks Default Storage​

{
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM",
  "quantity": 1024,
  "unit": "gb",
  "tier_1_operations_thousands": 100,
  "tier_2_operations_thousands": 500
}

Example: Zerobus​

{
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM",
  "mode": "otel",
  "monthly_ingested_gb": 1000
}

Example: Platform Add-on​

{
  "cloud": "AWS",
  "tier": "ENTERPRISE",
  "addon_type": "MISSION_CRITICAL",
  "product_spend_at_list": 10000,
  "pricing_date": "2026-08-30",
  "discount_pct": 0
}

Example: AI Parse​

{
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM",
  "mode": "pages",
  "complexity": "medium",
  "pages_thousands": 10
}

Example: Shutterstock ImageAI​

{
  "cloud": "AWS",
  "region": "us-east-1",
  "tier": "PREMIUM",
  "images_per_month": 500
}

Export​

Router prefix: /api/v1/export

Export Estimate to Excel​

GET /api/v1/export/estimate/{estimate_id}/excel

Response: Binary Excel file download (application/vnd.openxmlformats-officedocument.spreadsheetml.sheet)

Export All Estimates to Excel​

GET /api/v1/export/estimates/excel

Exports all of the authenticated user's estimates into a single Excel file.

AI Chat​

Router prefix: /api/v1/chat

Send Message​

POST /api/v1/chat/
{
  "message": "What would a DBSQL serverless warehouse cost?",
  "conversation_id": "uuid",
  "mode": "estimate",
  "estimate_context": { ... },
  "workloads_context": [ ... ]
}

Response:

{
  "content": "A DBSQL Serverless warehouse...",
  "conversation_id": "uuid",
  "tool_results": [],
  "proposed_workload": null
}

Send Message (Streaming)​

POST /api/v1/chat/stream

Same request body. Response is Server-Sent Events (SSE):

event: start
data: {"conversation_id": "uuid"}

event: content
data: {"text": "A DBSQL"}

event: content
data: {"text": " Serverless warehouse..."}

event: done
data: {"final_state": {...}}

Clear Conversation​

DELETE /api/v1/chat/{conversation_id}

Apply AI-Generated Estimate​

POST /api/v1/chat/{conversation_id}/apply

Creates database records from the AI agent's draft estimate.

Get Conversation State​

GET /api/v1/chat/{conversation_id}/state

Returns the current state of a conversation including any pending proposed workloads.

Confirm Proposed Workload​

POST /api/v1/chat/{conversation_id}/confirm-workload

Accepts or rejects a workload proposed by the AI assistant.

Users​

Router prefix: /api/v1/users

Get Current User​

GET /api/v1/users/me

List Users​

GET /api/v1/users?skip=0&limit=100

Create User​

POST /api/v1/users/

Get User by ID​

GET /api/v1/users/{user_id}

Get User by Email​

GET /api/v1/users/email/{email}

Update User​

PUT /api/v1/users/{user_id}

Workload Types​

Router prefix: /api/v1/workload-types

List Workload Types​

GET /api/v1/workload-types

Returns the workload types present in the installation's reference data with their UI configuration flags. The exact set depends on the installed release and completed data updates.

Get Workload Type​

GET /api/v1/workload-types/{workload_type}

Reference Data​

Router prefix: /api/v1/reference

Regions​

GET /api/v1/reference/regions

Pricing Tiers​

GET /api/v1/reference/pricing-tiers

Instance Types​

GET /api/v1/reference/instances/types?cloud=AWS&region=us-east-1

Instance Families​

GET /api/v1/reference/instances/families

VM Costs​

GET /api/v1/reference/instances/vm-costs

DBSQL Warehouse Sizes​

GET /api/v1/reference/dbsql/warehouse-sizes

Model Serving GPU Types​

GET /api/v1/reference/model-serving/gpu-types

FMAPI Databricks Models​

GET /api/v1/reference/fmapi/databricks-models

FMAPI Proprietary Models​

GET /api/v1/reference/fmapi/proprietary-models

DBU Rates​

GET /api/v1/reference/dbu-rates

Pricing Bundle Status​

GET /api/v1/reference/pricing-bundle/status

Regenerate Pricing Bundle​

POST /api/v1/reference/pricing-bundle/regenerate

VM Pricing​

Router prefix: /api/v1/vm-pricing

List VM Pricing​

GET /api/v1/vm-pricing

Instance Types​

GET /api/v1/vm-pricing/instance-types

Regions​

GET /api/v1/vm-pricing/regions

Get Price​

GET /api/v1/vm-pricing/price

Pricing Tiers​

GET /api/v1/vm-pricing/tiers

Payment Options​

GET /api/v1/vm-pricing/payment-options

Debug Endpoints​

These endpoints are available for diagnosing configuration issues:

Debug Headers​

GET /api/v1/debug/headers

Returns all HTTP headers received by the app (useful for verifying SSO headers from Databricks Apps proxy).

Debug External API​

GET /api/v1/debug/external-api

Tests external API authentication. Returns token availability status and attempts a test calculation.

Debug Database​

GET /api/v1/debug/database

Returns database connection status, environment variable values (passwords redacted), token manager status, and connectivity test result.

Refresh Database Connection​

POST /api/v1/debug/database/refresh

Forces a database engine refresh with a new OAuth token.

Frontend Data Endpoints​

These convenience endpoints are defined directly in main.py and provide reference data used by the frontend store. Many overlap with the router-based /api/v1/reference/* endpoints but return data in formats optimized for the frontend UI.

API Root​

GET /api

Returns API name, version, and description.

Cloud Providers with Regions​

GET /api/v1/reference/clouds

Returns cloud providers (AWS, Azure, GCP) with their available regions, queried from the sync_ref_sku_region_map table. Falls back to hardcoded defaults if the database is unavailable.

Regions by Cloud​

GET /api/v1/regions?cloud=AWS

Returns all regions for a specific cloud provider from the SKU region map.

Pricing Tiers​

GET /api/v1/reference/tiers

Returns Standard, Premium, and Enterprise tier options.

Instance Types​

GET /api/v1/instances/types?cloud=AWS
GET /api/v1/reference/instance-types/{cloud}

Both return instance types with vCPU, memory, DBU rate, and family info. The /reference/ variant uses a path parameter. Queries sync_ref_instance_dbu_rates with fallback to hardcoded lists.

Instance Families​

GET /api/v1/instances/families

Returns: ["General Purpose", "Compute Optimized", "Memory Optimized", "Storage Optimized", "GPU"]

VM Costs​

GET /api/v1/instances/vm-costs?cloud=AWS&region=us-east-1&instance_type=m5.xlarge

Proxies to the external Lakemeter pricing API. Optional query params: pricing_tier, payment_option.

DBSQL Warehouse Sizes​

GET /api/v1/dbsql/warehouse-sizes
GET /api/v1/reference/dbsql-sizes

Both return the 9 DBSQL warehouse sizes (2X-Small through 4X-Large) with DBU/hour rates.

DBSQL Warehouse Types​

GET /api/v1/dbsql/warehouse-types

Returns: ["CLASSIC", "PRO", "SERVERLESS"]

DLT Editions​

GET /api/v1/dlt/editions
GET /api/v1/reference/dlt-editions

Both return Core, Pro, and Advanced editions. The /reference/ variant also includes dbu_multiplier.

Serverless Modes​

GET /api/v1/serverless/modes

Returns standard (1.0x) and performance (1.3x) modes.

Model Serving GPU Types (by cloud)​

GET /api/v1/model-serving/gpu-types?cloud=AWS
GET /api/v1/reference/model-serving-gpu-types/{cloud}

Returns GPU types with DBU/hour rates. Available types vary by cloud.

Photon Multipliers​

GET /api/v1/photon/multipliers?cloud=AWS&sku_type=JOBS

Returns Photon multipliers by SKU type. Optional sku_type filter.

FMAPI Model Lists​

GET /api/v1/fmapi/databricks-models/list
GET /api/v1/reference/fmapi-models
GET /api/v1/reference/fmapi-databricks
GET /api/v1/reference/fmapi-proprietary

Various views of available foundation models. /reference/fmapi-databricks includes model types, inference types, and per-type model lists. /reference/fmapi-proprietary includes providers, endpoint types, and context lengths.

Pricing Data​

GET /api/v1/pricing/dbu-rates?cloud=AWS&region=us-east-1&tier=PREMIUM
GET /api/v1/pricing/product-types?cloud=AWS&region=us-east-1&tier=PREMIUM

/dbu-rates returns DBU prices per product type for a cloud/region/tier combination. Optional product_type filter returns a single rate. /product-types returns the list of available product type strings.

Health and Version​

GET /health

Basic process health check:

{
  "status": "healthy",
  "version": "0.2.0"
}

The upgrade utility uses the system endpoints below to verify the deployed version and the Lakebase connection:

GET /api/v1/system/version
GET /api/v1/system/health

Version response:

{
  "app_version": "0.2.0",
  "upgrade_policy": {
    "patch": "code_only",
    "minor": "data_update",
    "major": "schema_migration"
  }
}

System health response:

{
  "status": "healthy",
  "app_version": "0.2.0",
  "database": "connected"
}
