Exporting Legacy Metadata

Analyzer expects all the legacy code to be exported into a folder accessible by it.
For SQL code exporting, most times a database export can be used to export object definitions (tables, views procedures, functions etc...) in bulk. Ideally, each SQL file should contain a single artifact.

All the major ETL platforms provide some kind of export of their code repositories. Typically this is done into XML or JSON formats which can be used to restore the environment. Here is a short guide for how to export metadata from various platforms:

Microsoft SQL Server​

To extract metadata like Table, View, and Stored Procedures DDLs, you can use Microsoft SQL Server Management Studio (SSMS).

  • In Object Explorer, expand the node for the instance containing the database to be scripted.
  • Right-click on the database you want to script, and select Tasks > Generate Scripts. sql-server-export-object-explorer

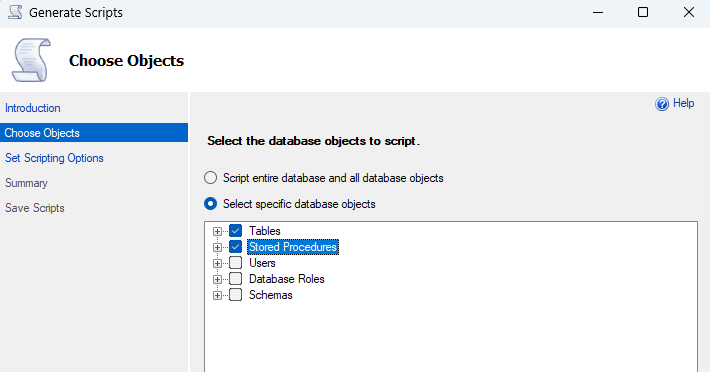

  • On the Choose Objects dialog page, select either the entire database or choose the object types to be migrated.
    • Note: Select all required object types. Screenshot below is for illustration purposes only.
    sql-server-export-choose-objects

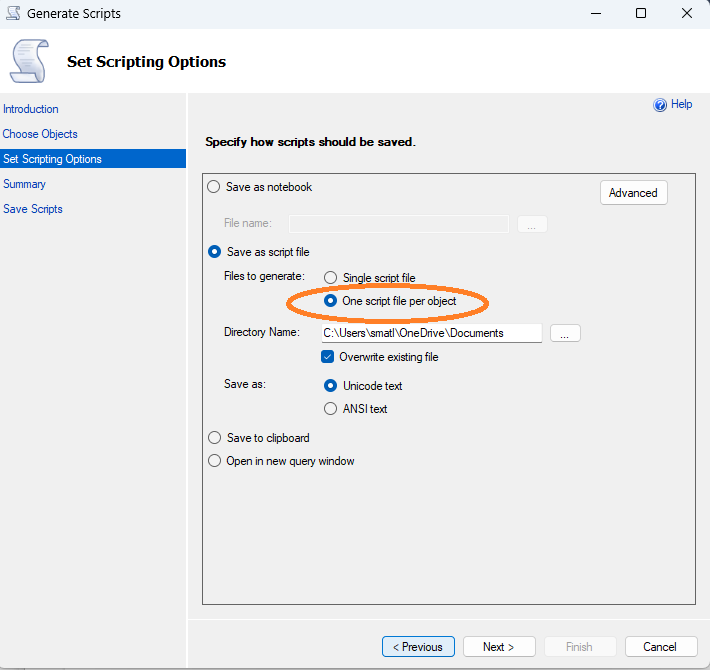

  • In the Set Scripting Options dialog page, choose Save as script file and one script file per object as illustrated below.
    sql-server-export-set-scripting-options

See https://learn.microsoft.com/en-us/ssms/scripting/generate-and-publish-scripts-wizard for more details on how to use the Generate Scripts wizard in SSMS.

Azure Synapse (Dedicated)​

Follow the same steps as for Microsoft SQL Server above. The only difference is that you will need to connect to the Synapse Dedicated SQL pool instead of a regular SQL Server instance.

Azure Synapse (Serverless)​

If you use Synapse Studio and have your SQL code saved in SQL scripts, you can export the files with the Export-AzSynapseSqlScript PowerShell cmdlet. This method requires Azure PowerShell modules.

Otherwise, you can use Microsoft SQL Server Management Studio (SSMS) to extract metadata like Table, View, and Stored Procedures DDLs.

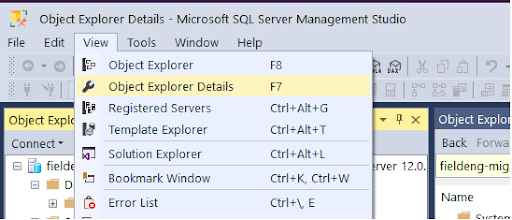

  • Select “Object Explorer Details” under the View button in the toolbar synapse-objects-explorer-view

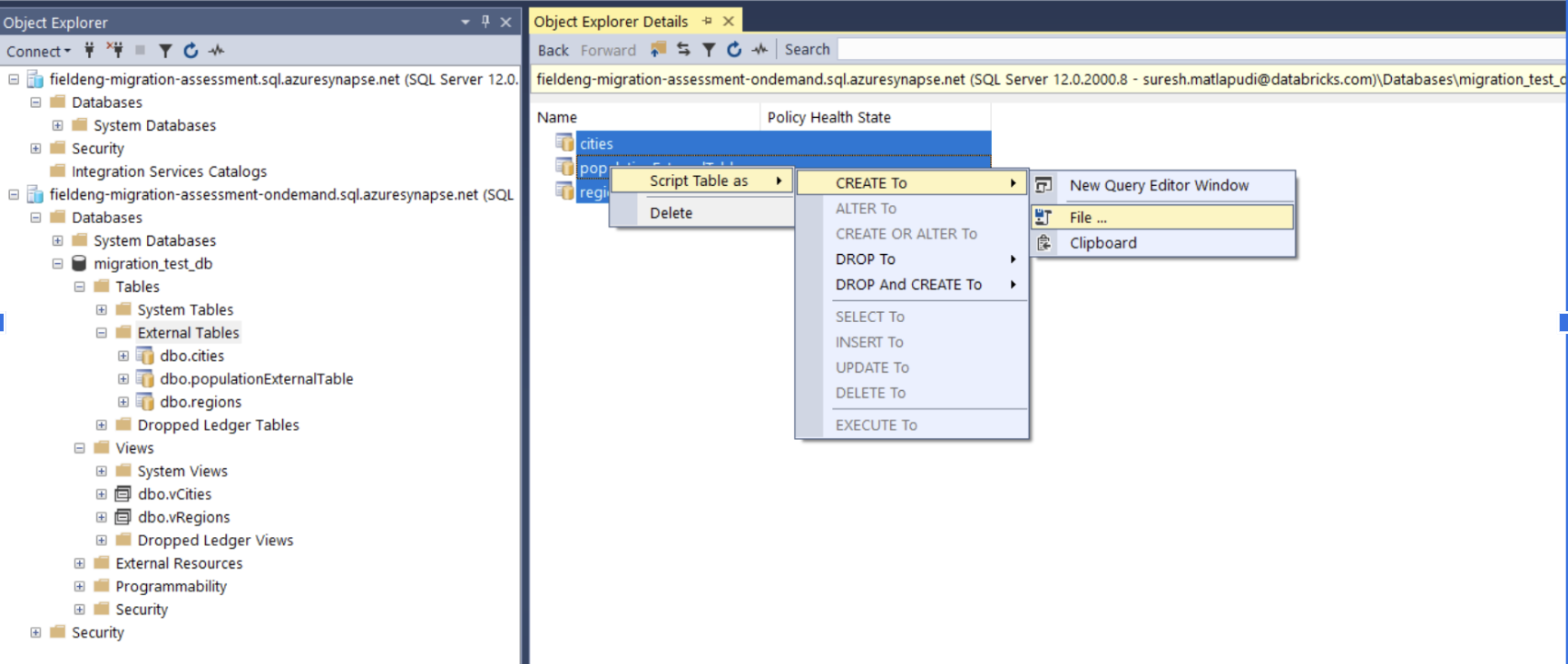

  • For each object type, select the required objects to export and right-click on the selection to choose “Script as” > “CREATE To” > “File” as pictured below.
    synapse-objects-explorer-script-as

PowerCenter​

  • Overview
    To run the BladeBridge analyzer or converters on Informatica XMLs, the XML file first need to be extracted out of the PowerCenter repository. Typically, it is easier to deal with the analysis and conversion of a relatively granular level, so extracting the artifacts at the workflow level is advisable. Objects can be exported from Powercenter Repository Manager or using pmrep command

  • Metadata Extraction
    To extract the metadata out of PowerCenter repository, use the following commands:

  • Connect to repository

    pmrep connect <list of credentials>

  • Get the list of folders

    pmrep listobjects -o FOLDER

  • For each folder, get the list of workflows

    pmrep listobjects -o WORKFLOW -f <your folder name>

  • Workflow extraction
    Create a batch script with the following command template for each folder.

    Note: Excel can be used to create the script with the following command:

    pmrep objectexport -n workflow_name -o WORKFLOW -f folder_name -b -r -m -s -u path-to-output-file

DataStage​

  • Typically in DataStage the easiest way to export the objects is by using the GUI. However, Datastage has command line utilities to export via CLI.
  • Please use the XML format, as both Analyzer and Converter support XML-only Datastage exports

SSIS​

You’ll need to export the DTSX packages. For details on how to obtain it see: https://docs.microsoft.com/en-us/sql/integration-services/import-export-data/save-and-run-package-sql-server-import-and-export-wizard?view=sql-server-ver15

In many cases the DTSX packages can also be just copied to the analyzer folder.

Talend​

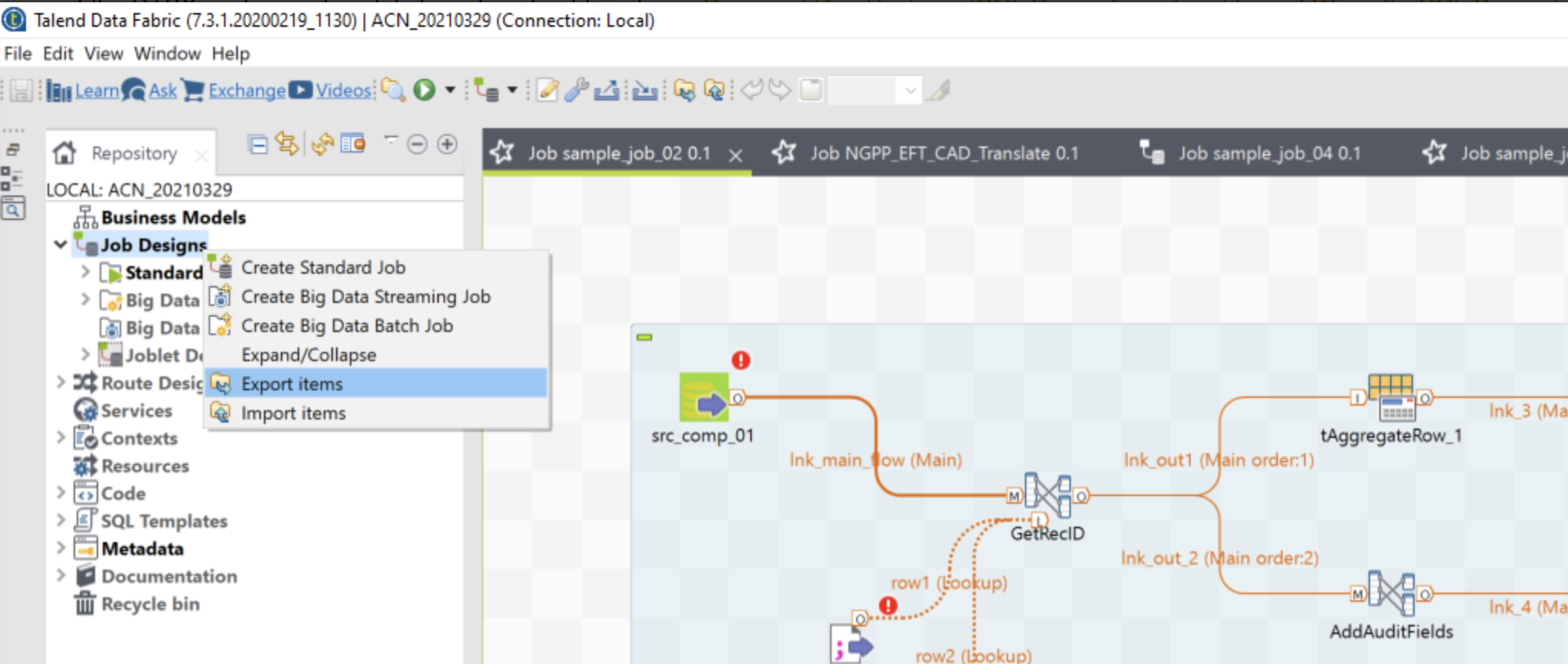

To export all jobs in bulk, right click on Job Designs and select "Export Items". In the popup, select "Include All Dependencies"

talend-export

Note: while Talend jobs can be exported as a single zip file, when running analyzer or any converter utilities please unzip the file(s). Both the analyzer and converters will look for .item and .properties files in non-zipped folders.

ODI​

Exporting jobs in ODI is detailed in this document: https://docs.oracle.com/middleware/1212/odi/ODIDG/export_import.htm#ODIDG578

Alteryx​

Analyzer needs the .yxmd files. These can be obtained by Select File > Export to download your workflow to your local machine in .yxmd format.

SAP Business Objects Data Services​

Instructions for export can be found in the following articles: https://help.sap.com/viewer/2d2abbb0fab34071a4c53b7de873241b/4.2.13/en-US/571901366d6d1014b3fc9283b0e91070.html https://help.sap.com/viewer/2d2abbb0fab34071a4c53b7de873241b/4.2.13/en-US/5718d4ba6d6d1014b3fc9283b0e91070.html

IICS / IDMC​

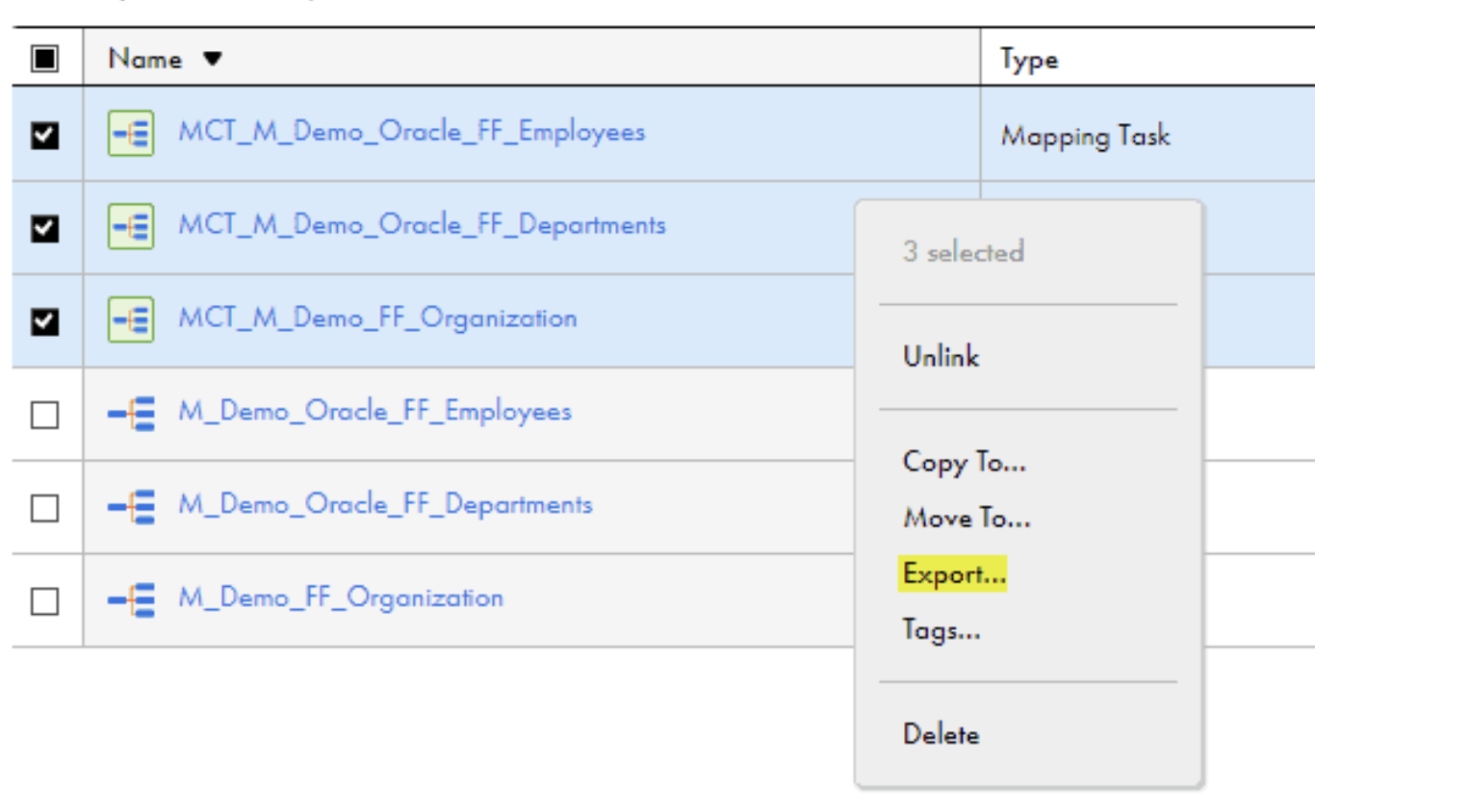

Select all the Mapping Configuration tasks you want to read the metadata from and export them as a single file.

infacloud-export

Note #1: Analyzer and Converter expect the metadata from InfaCloud to be preserved as zip files. Please do not change the content of these files.

Note #2: InfaCloud zip files are deeply nested. Analyzer and Converter temporarily unzip the contents of the zip files into the folder locations associated with the output analyzer report and output code respectively. On Windows OS, please keep the paths specified in -d, -r, -o switches short, as the fully exploded path may exceed the Windows max path limitation
