DLT-META Lakehouse App

Prerequisites

System Requirements

• Python 3.8.0 or higher
• Databricks CLI (latest version, e.g., 0.244.0)
• Configured workspace access

Initial Setup

1. Authenticate with Databricks:

   databricks auth login --host WORKSPACE_HOST

2. Setup Python Environment:

   git clone https://github.com/databrickslabs/dlt-meta.git
   cd dlt-meta
   python -m venv .venv
   source .venv/bin/activate
   pip install databricks-sdk

Deployment Options

Deploy to Databricks

1. Create Custom App:

   databricks apps create demo-dltmeta

   Note: Wait for command completion (a few minutes)

2. Setup App Code:

   cd dlt-meta/lakehouse_app

   # Replace testapp with your preferred folder name
   databricks sync . /Workspace/Users/<user1.user2>@databricks.com/testapp

   # Deploy the app
   databricks apps deploy demo-dltmeta --source-code-path /Workspace/Users/<user1.user2>@databricks.com/testapp

3. Access the App:

   • Open URL from step 1 log, or
   • Navigate: Databricks Web UI → New → App → Back to App → Search your app name

Run Locally

1. Setup Environment:

   cd dlt-meta/lakehouse_app
   pip install -r requirements.txt

2. Configure Databricks:

   databricks configure --host <your databricks host url> --token <your token>

3. Start App:

   python App.py

   Access at: http://127.0.0.1:5000

Using DLT-META App

App User Setup

The app creates a dedicated user account that:

• Handles onboarding, deployment, and demo execution
• Requires specific permissions for UC catalogs and schemas
• Example username format: “app-40zbx9_demo-dltmeta”

Getting Started

1. Initial Setup:

   • Launch app in browser
   • Click “Setup dlt-meta project environment”
   • This initializes the environment for onboarding and deployment

2. Pipeline Management:

   • Use “UI” tab to onboard and deploy pipelines
   • Configure pipelines according to your requirements

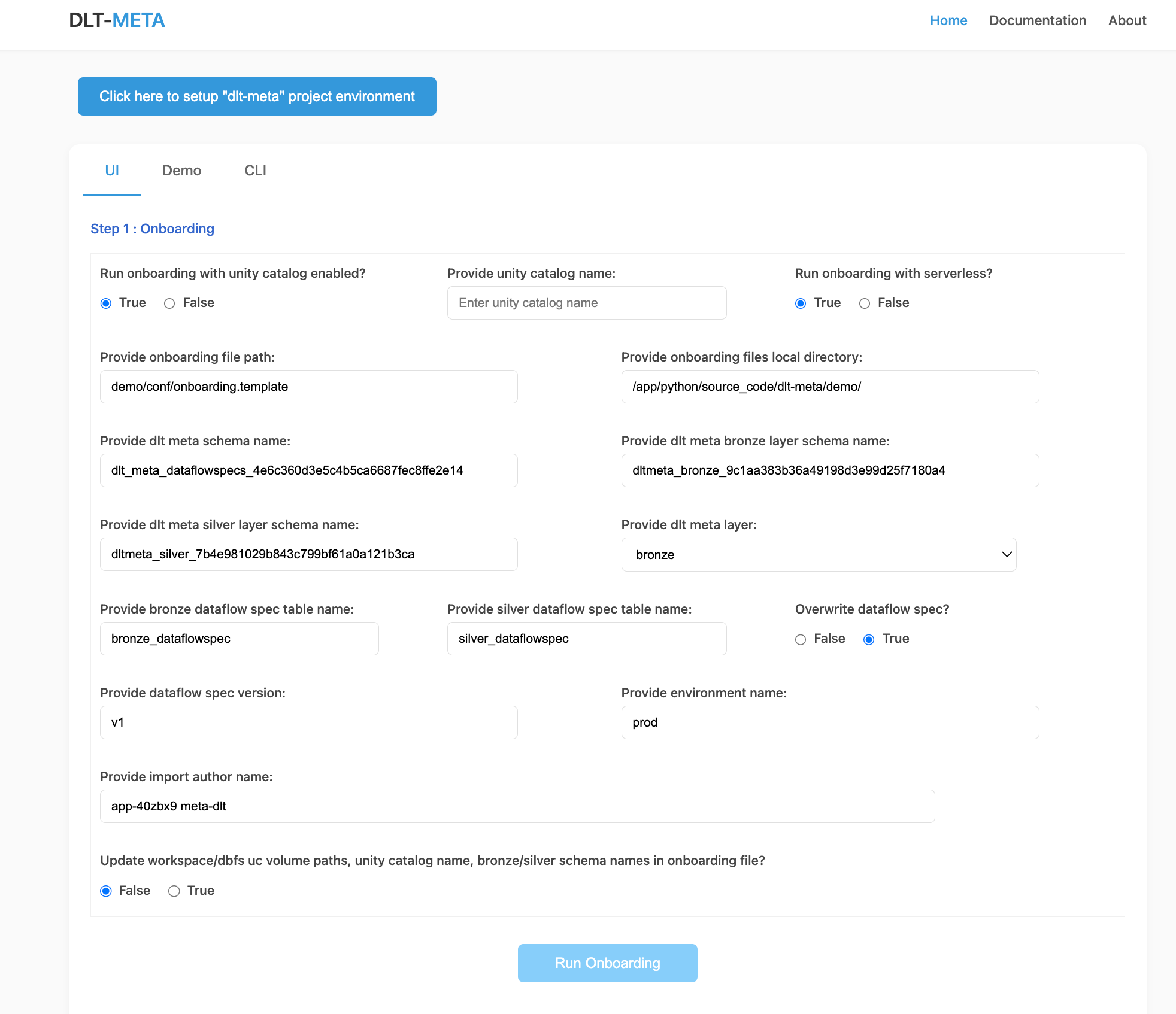

   Onboarding Pipeline: Pipeline onboarding interface for configuring new data pipelines

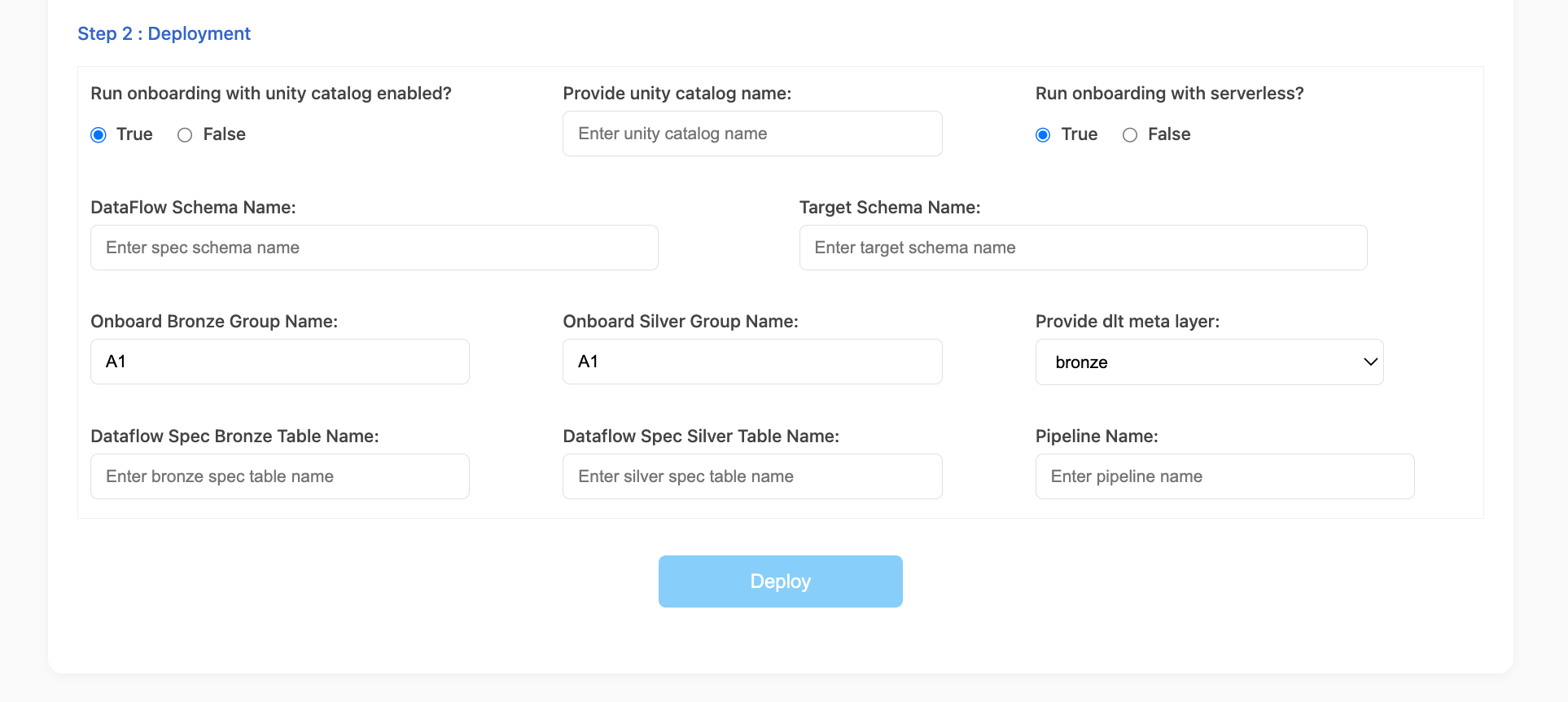

   Deploying Pipeline: Pipeline deployment interface for managing and deploying pipelines

3. Demo Access:

   • Available demos can be found under “Demo” tab
   • Run pre-configured demo pipelines to explore features

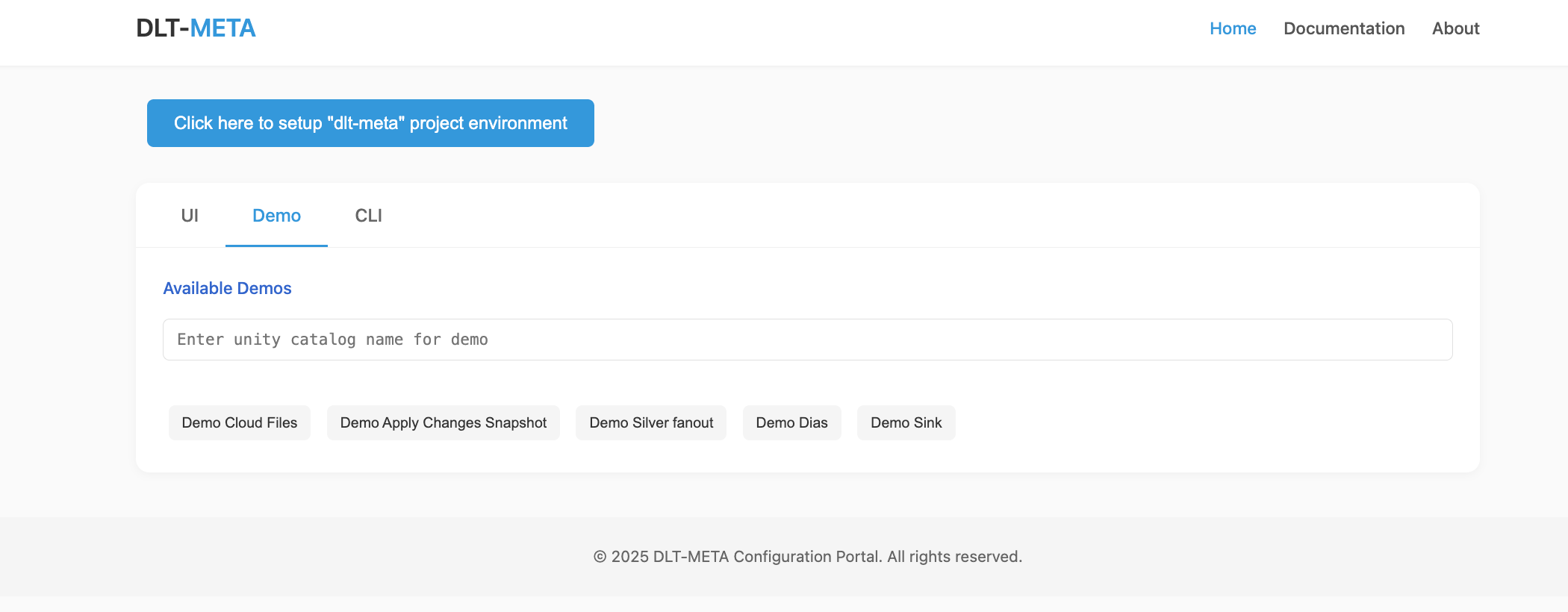

   Demo interface showing available example pipelines

4. Command Line Interface:

   • Access CLI features under the “CLI” tab
   • Execute commands directly from the web interface

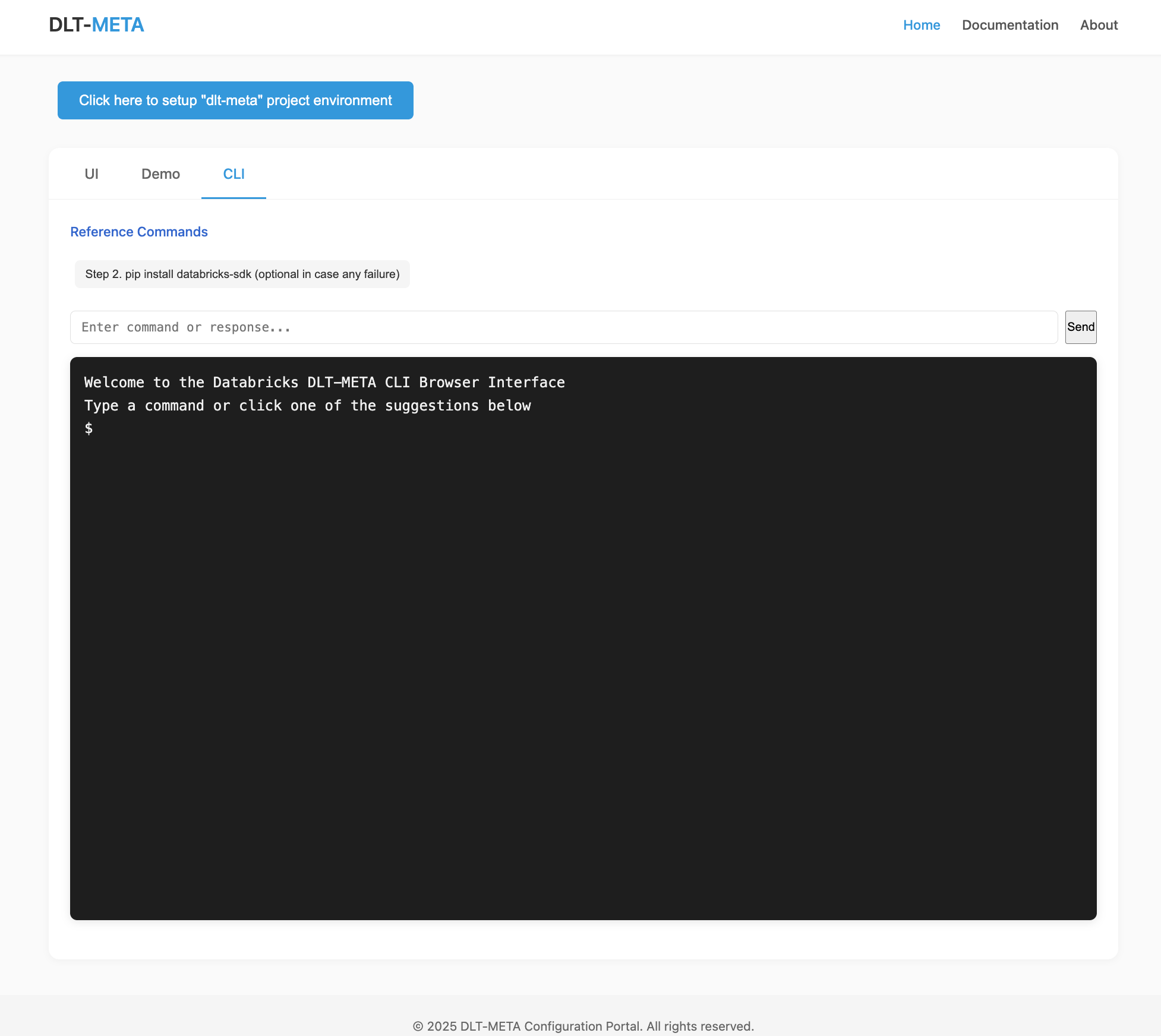

   CLI interface for command-line operations
