Lakeflow Declarative Pipelines Sink Demo

Lakeflow Declarative Pipelines Sink Demo

This demo will perform following steps:

  • Showcase onboarding process for dlt writing to external sink pattern
  • Run onboarding for the bronze iot events
  • Publish test events to kafka topic
  • Run Bronze Lakeflow Declarative Pipelines which will read from kafka source topic and write to:
    • Events delta table into UC
    • Create quarantine table as per data quality expectations
    • Writes to external kafka topics
    • Writes to external dbfs location as external delta sink

Steps:

  1. Launch Command Prompt

  2. Install Databricks CLI

    • Once you install Databricks CLI, authenticate your current machine to a Databricks Workspace:
    databricks auth login --host WORKSPACE_HOST
  3. Install Python package requirements:

    # Core requirements
    pip install "PyYAML>=6.0" setuptools databricks-sdk

    # Development requirements
    pip install flake8==6.0 delta-spark==3.0.0 pytest>=7.0.0 coverage>=7.0.0 pyspark==3.5.5
  4. Clone dlt-meta:

    git clone https://github.com/databrickslabs/dlt-meta.git
  5. Navigate to project directory:

    cd dlt-meta
  6. Set python environment variable into terminal:

    dlt_meta_home=$(pwd)
    export PYTHONPATH=$dlt_meta_home
  7. Configure Kafka (Optional): If you are using secrets for kafka, create databricks secrets scope for source and sink kafka:

    databricks secrets create-scope <<n>>
    databricks secrets put-secret --json '{
        "scope": "<<n>>",
        "key": "<<keyname>>",
        "string_value": "<<value>>"
    }'
  8. Run the command:

    python demo/launch_dlt_sink_demo.py --uc_catalog_name=<<uc_catalog_name>> --source=kafka --kafka_source_topic=<<kafka source topic name>> --kafka_sink_topic=<<kafka sink topic name>> --kafka_source_servers_secrets_scope_name=<<kafka source servers secret name>> --kafka_source_servers_secrets_scope_key=<<kafka source server secret scope key name>> --kafka_sink_servers_secret_scope_name=<<kafka sink server secret scope key name>> --kafka_sink_servers_secret_scope_key=<<kafka sink servers secret scope key name>> --profile=<<DEFAULT>>

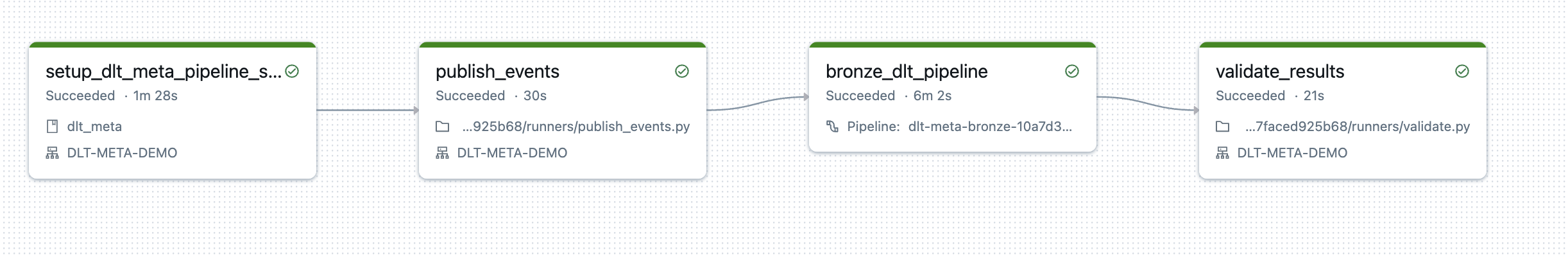

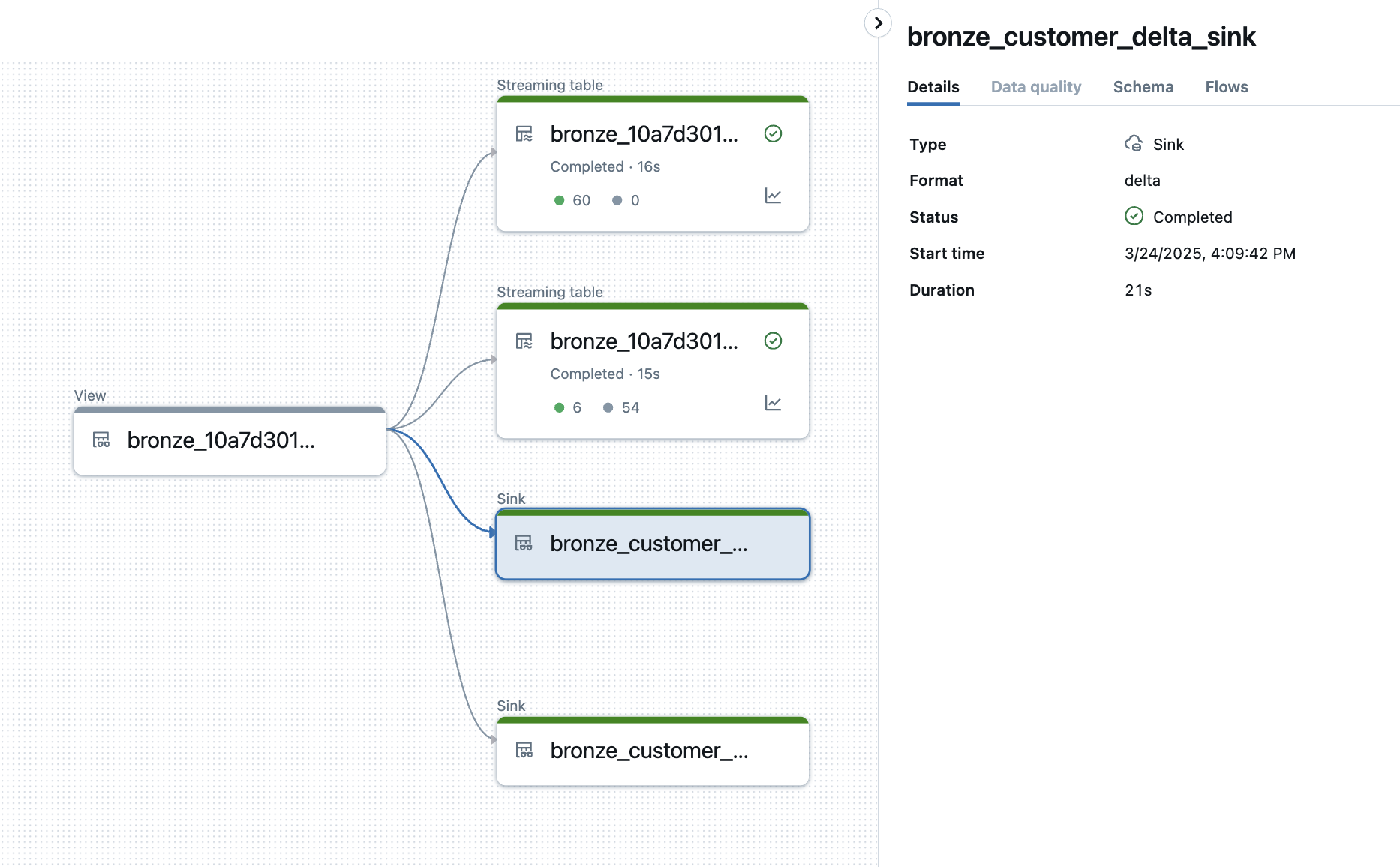

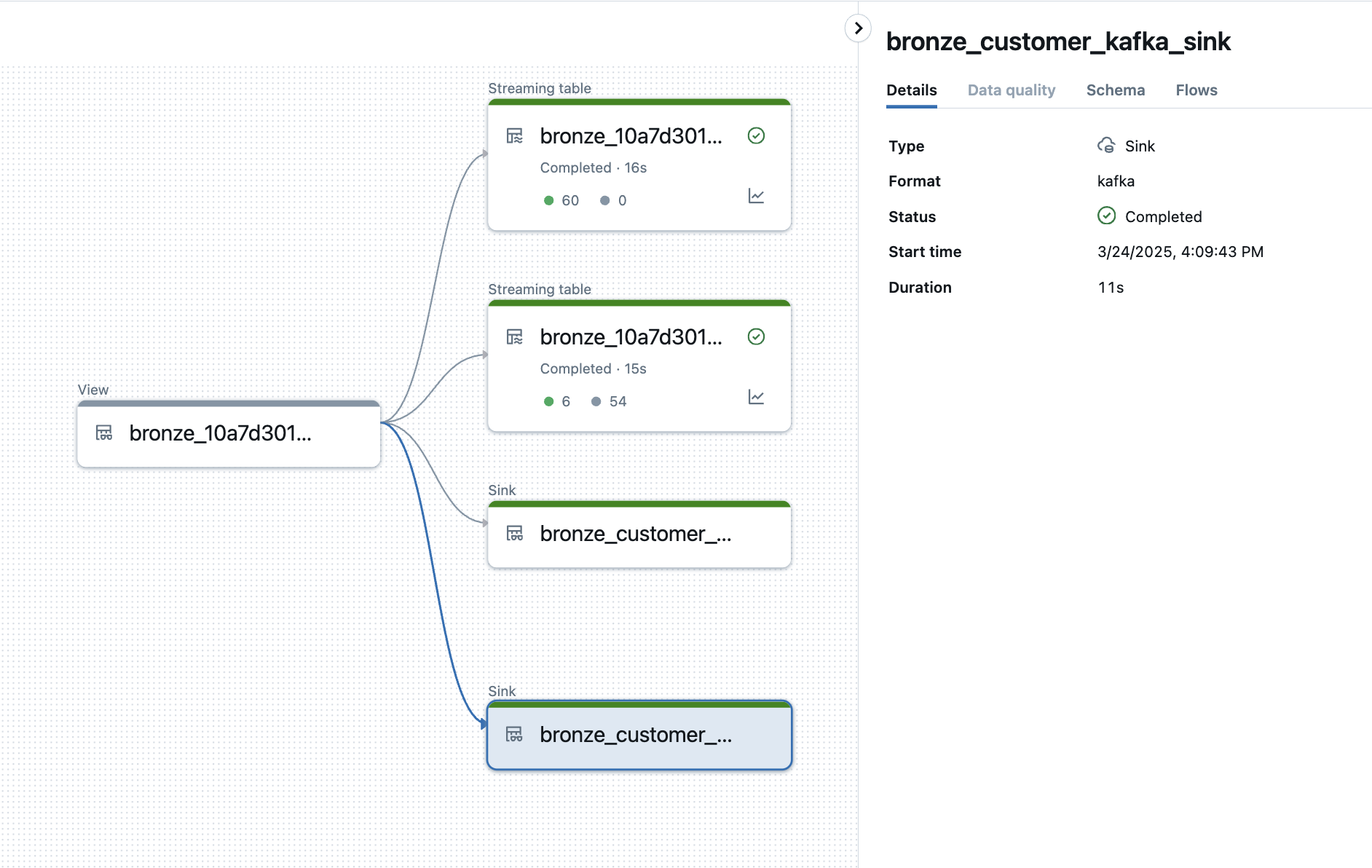

dlt_demo_sink.png dlt_demo_sink.png dlt_delta_sink.png dlt_delta_sink.png dlt_kafka_sink.png dlt_kafka_sink.png
