DAB Demo

DAB Demo

Overview

This demo showcases how to use Databricks Asset Bundles (DABs) with DLT-Meta:

This demo will perform following steps:

• Create dlt-meta schema’s for dataflowspec and bronze/silver layer
• Upload necessary resources to unity catalog volume
• Create DAB files with catalog, schema, file locations populated
• Deploy DAB to databricks workspace
• Run onboarding using DAB commands
• Run Bronze/Silver Pipelines using DAB commands
• Demo examples will showcase fan-out pattern in silver layer
• Demo example will show case custom transformations for bronze/silver layers
• Adding custom columns and metadata to Bronze tables
• Implementing SCD Type 1 to Silver tables
• Applying expectations to filter data in Silver tables

Steps:

1. Launch Command Prompt

2. Install Databricks CLI

   • Once you install Databricks CLI, authenticate your current machine to a Databricks Workspace:

   databricks auth login --host WORKSPACE_HOST

3. Install Python package requirements:

   # Core requirements
   pip install "PyYAML>=6.0" setuptools databricks-sdk

   # Development requirements
   pip install flake8==6.0 delta-spark==3.0.0 pytest>=7.0.0 coverage>=7.0.0 pyspark==3.5.5

4. Clone dlt-meta:

   git clone https://github.com/databrickslabs/dlt-meta.git

5. Navigate to project directory:

   cd dlt-meta

6. Set python environment variable into terminal:

   dlt_meta_home=$(pwd)
   export PYTHONPATH=$dlt_meta_home

7. Generate DAB resources and set up schemas: This command will:

   • Generate DAB configuration files
   • Create DLT-Meta schemas
   • Upload necessary files to volumes

   python demo/generate_dabs_resources.py --source=cloudfiles --uc_catalog_name=<your_catalog_name> --profile=<your_profile>

   Note: If you don’t specify --profile, you’ll be prompted for your Databricks workspace URL and access token.

8. Deploy and run the DAB bundle:

   • Navigate to the DAB directory:

   cd demo/dabs

   • Validate the bundle configuration:

   databricks bundle validate --profile=<your_profile>

   • Deploy the bundle to dev environment:

   databricks bundle deploy --target dev --profile=<your_profile>

   • Run the onboarding job:

   databricks bundle run onboard_people -t dev --profile=<your_profile>

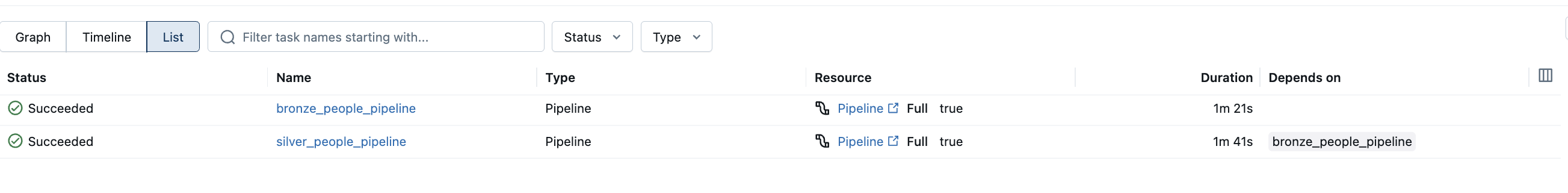

   • Execute the pipelines:

   databricks bundle run execute_pipelines_people -t dev --profile=<your_profile>
